DJI Zenmuse L1 Basic

$8,543.00

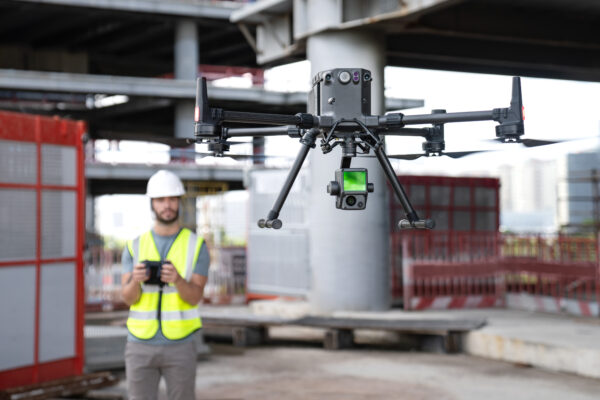

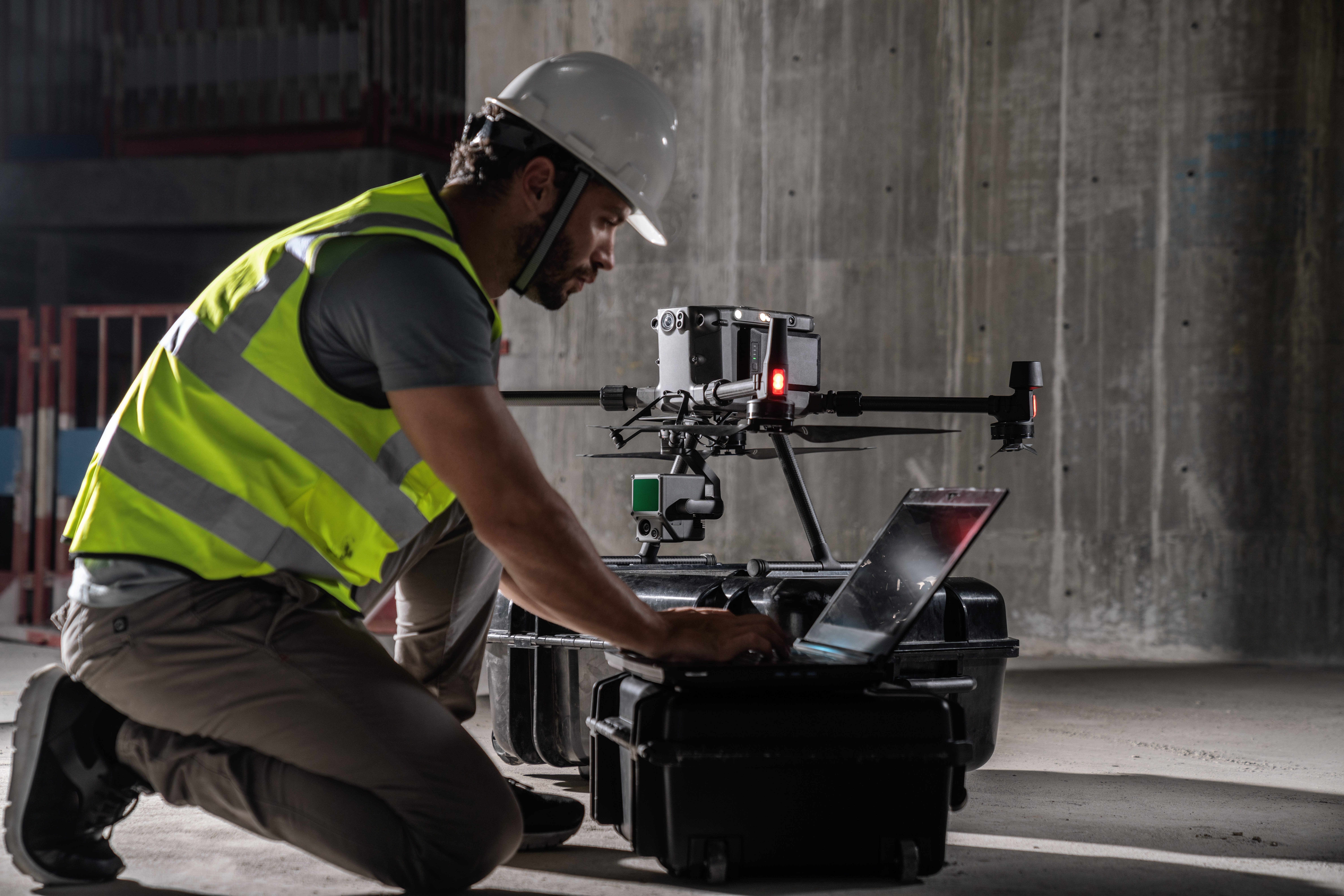

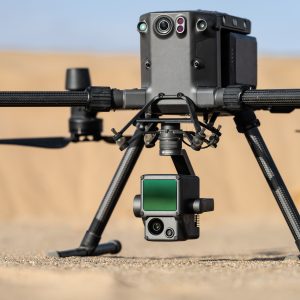

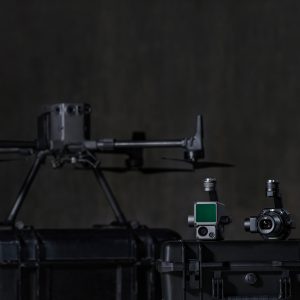

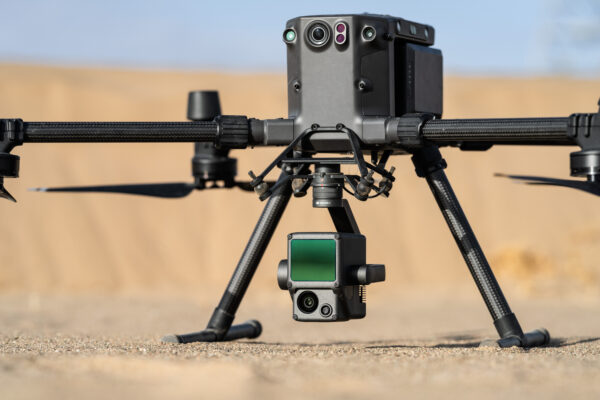

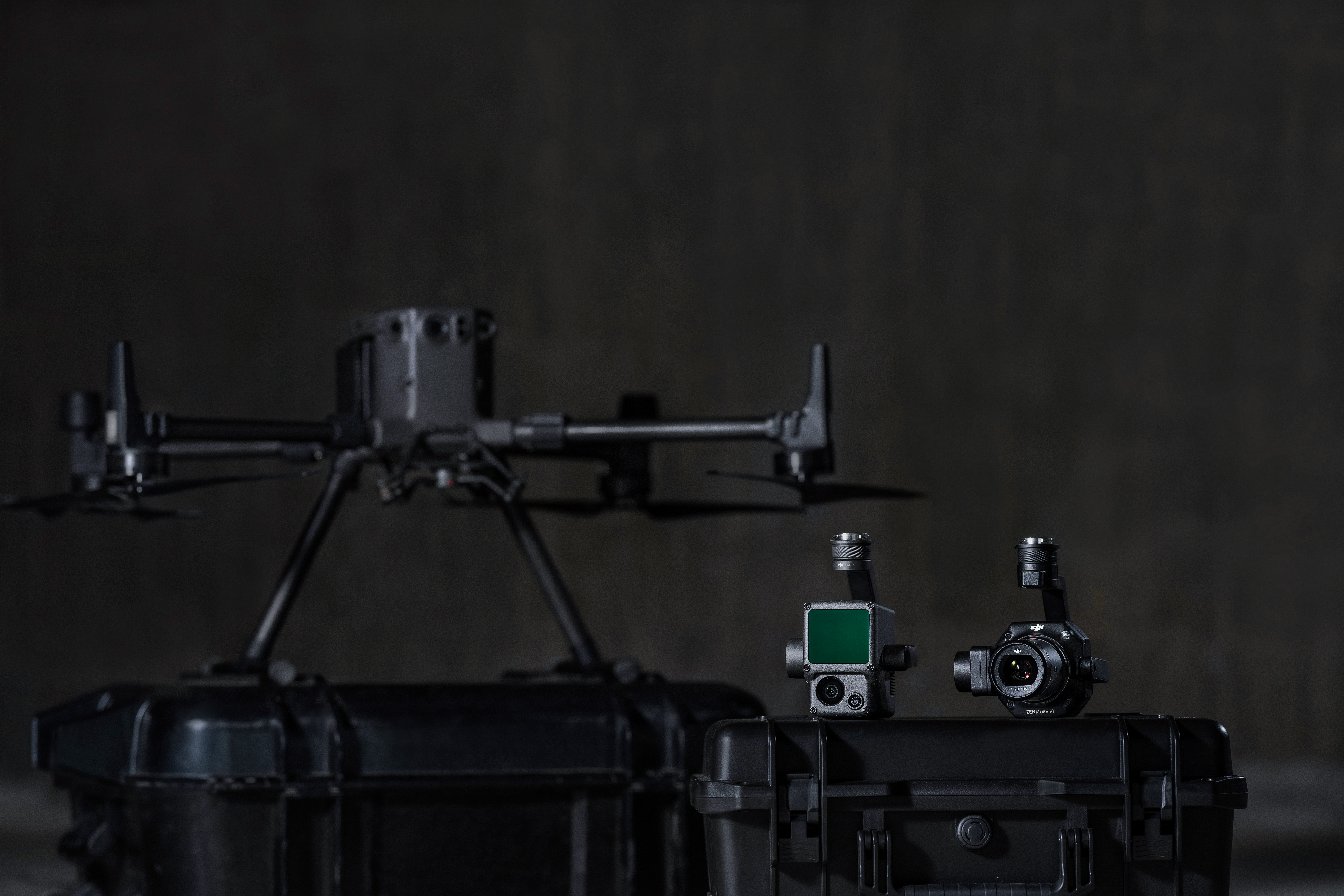

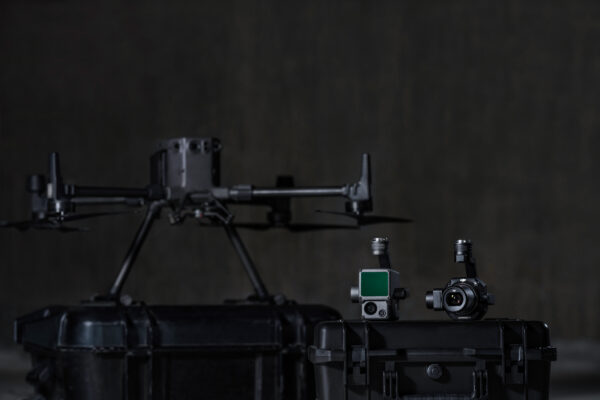

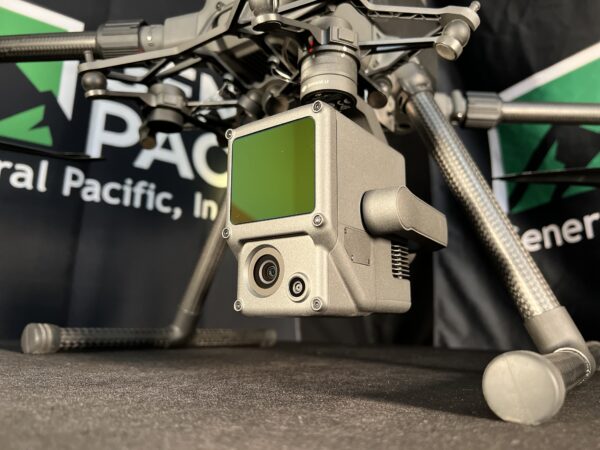

The DJI Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal. When used with the Matrice 300 RTK and DJI Terra, the L1 forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.

Out of stock

SKU: DJI ZENMUSE L1 Category: Tags: ,

Description

Livox Lidar Module

-Frame Lidar with up to 100% effective point cloud results
-Detection Range: 450m (80% reflectivity, 0 klx) / 190 m (10% reflectivity, 100 klx)
-Effective Point Rate: 240,000 pts/s
-Supports 3 Returns[3]
-Non-repetitive scanning pattern, Repetitive scanning pattern

RGB Camera

– 20MP
– 1-inch CMOS
– Mechanical Shutter

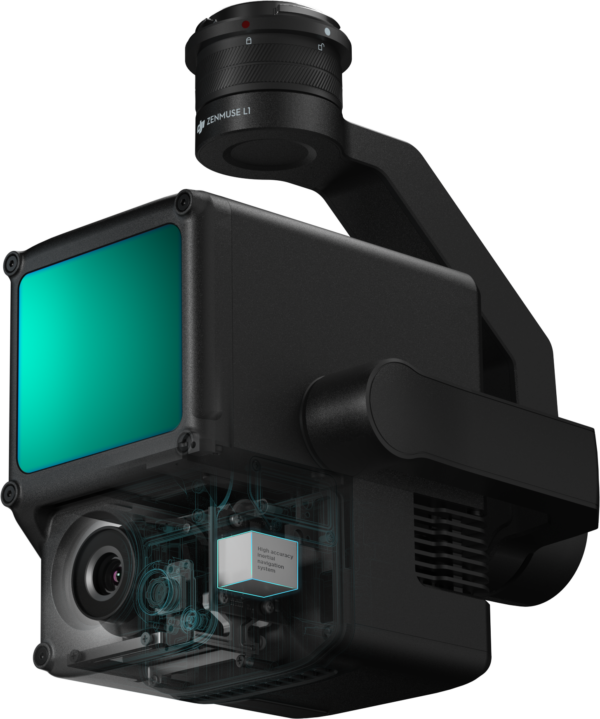

  • All-in-one Solution: Integrates a Lidar module, an RGB camera, and a high-accuracy IMU.
  • High Accuracy: Vertical – 5cm; Horizontal – 10cm (with 50m flight height).
  • Efficient: Cover 2km² in a single flight (flight velocity 10 m/s, flight height 100m, side overlap ratio 20%).
  • High Density Point Cloud: 240,000 effective points/s.
  • Multiple Returns: Support three returns (Dual and Triple returns to increase the point cloud density to up to 480,000 pts/sec).
  • Measurement Range: 450m maximum (80% reflectivity 0 klx).
  • Real-time Point Cloud View: Able to display and measure point clouds in real time.
  • Weather Resistant: IP54 rating, enabling operators to collect data in rainy or foggy environments.
  • DJI Ecosystem: Use DJI Terra for post-processing data.
