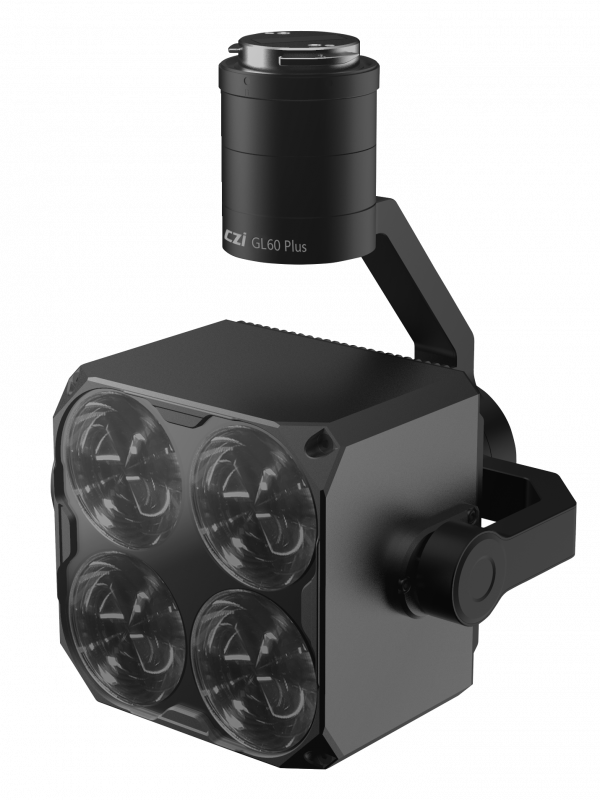

GL60 Plus Gimbal Searchlight


The GL60 Plus Gimbal Spotlight is a powerful and extremely bright payload. It is plug and play with the DJI Matrice series of drones. Most commonly used with the DJI Matrice 300 RTK, this payload is based on the DJI Skyport 2.0. With full compatibility, the GL60 Plus is one of the easiest payloads to control.


Mount Interface: DJI SkyPort V2.0

Weight: 26.45 oz. (750g)

Size: 4.96 x 5.16 x 6.57” (126 x 131 x 167mm)

FOV: 15 degrees

Supply Voltage: PSDK 17V + OSDK 24V  |  PSDK 17V

Total Power: 128W  |  68W

LED Power: 120W  |  60W

Illumination: 13400 LUMEN +/- 3%  |  8000 LUMEN +/- 3%

Illumination Efficiency 111.67 lm/w  |  133.33 lm/w

Searching Distance: 50m … 100m … 150m  |  50m … 100m … 150m

Light Spot Diameter: 13.2m … 26.4m … 39.5m  |  13.2m … 26.4m … 39.5m

Illumination Area: 136m² … 544m² … 1225m²  |  136m² … 544m² … 1225m²

Central Illumination: 85Lux … 24Lux … 11Lux  |  45Lux … 12Lux … 6Lux

Function Mode Always-On: 120w |  60w

Flashing: 120w  |  60w

Gimbal Angle Adjustment: Auto Follow, Brightness adjustment

Gimbal Movement Range Pitch: -110 degrees to + 30 degrees; Horizontal +/- 200 degrees

Gimbal Movement Range Designed: Pitch – 110 degrees to +40 degrees; Horizontal full direction 360 degrees; Horizontal rolling -90 degrees to +60 degrees ;

Operating Temperature: -4 degrees F to 122 degrees F (-20 degrees C to +50 degrees C)


In stock

SKU: GL60 Plus Category:


Shown on M300 RTK with H20T payload

The GL60 Plus adopts four groups of optical imaging components, each group is composed of four lenses, emits a sharp light column with an angle of only 15 degrees, a distance of 150m and an effective lighting area of 1225 square meters, which improves the aerial irradiation effect of UAV at night to a new height.

The overall design is ultra lightweight, weighs only 750g, and the rated power is up to 120W. Through the DJI Skyport V2.0 interface, it is compatible with DJI’s Matrice 210 and 300 RTK and other series of UAVs.

It is the perfect partner for night time search operations or to illuminate a work area effectively.

Additional information

Weight 7 lbs
Dimensions 16 × 18 × 12 in
