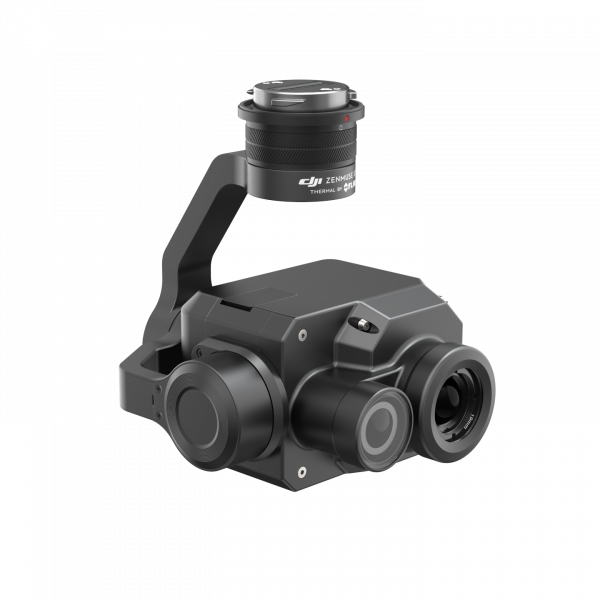

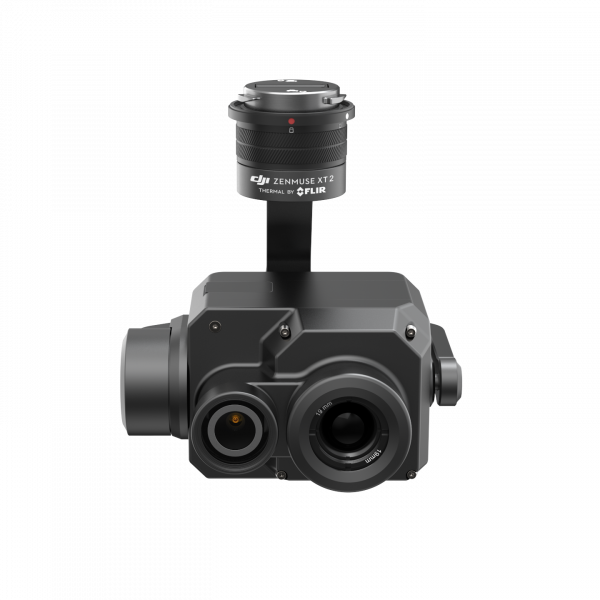

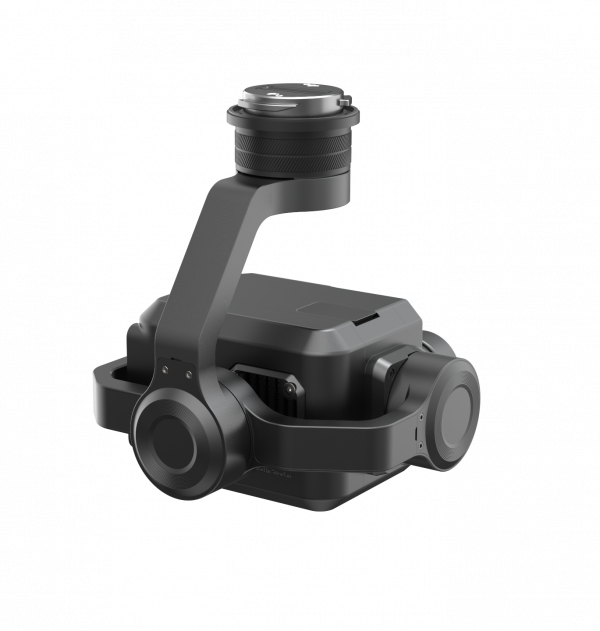

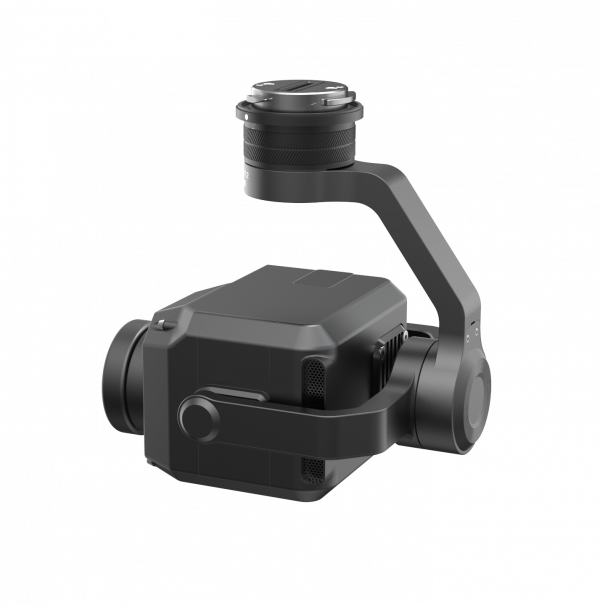

DJI Zenmuse XT2 Drone Camera

This Zenmuse XT2 camera by DJI is the perfect commercial drone solution with its thermal sensor and 4K visual.

SKU: CP.HY.00000086.01 Category: GTIN: 6958265155178

Description

This Zenmuse XT2 camera by DJI is the perfect commercial drone solution with its thermal sensor and 4K visual. The XT2 quickly transforms aerial data into powerful insights to save money, time and lives. The XT2’s weather resistant encasing protects it against the elements. The XT2 has built-in intelligence that helps analyze data onsite instead of waiting for a processing time afterwards.

Transform Data in Real-Time

  • Temp Alarm – Receive instant notifications when temperatures exceed parameters.
  • Heat Track – Record critical information by auto locking the XT2 onto the hottest object in view.
  • FLIR MSX® – View data quickly with the thermal data overlaid on the original visual image.

Application Examples

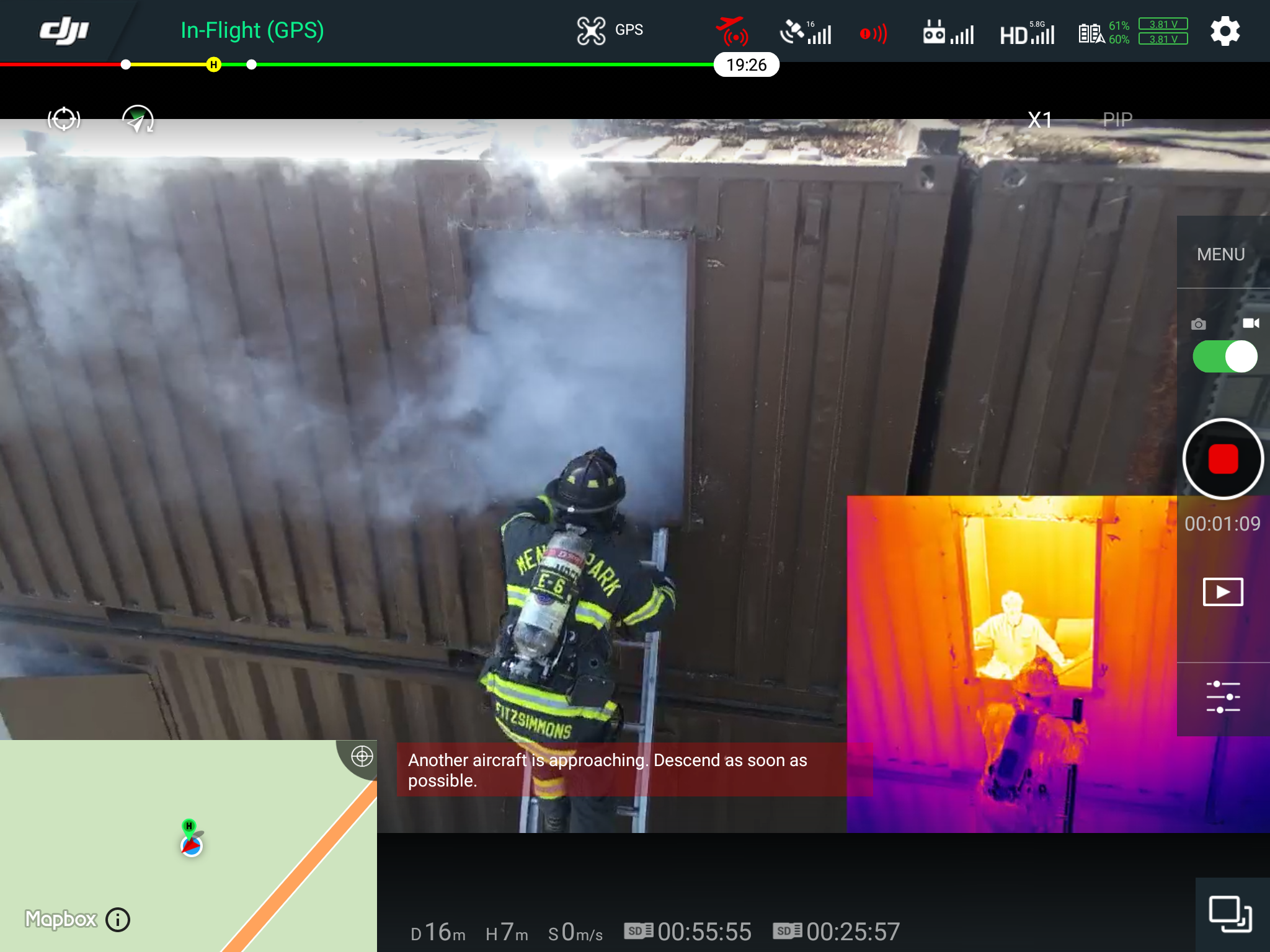

  • Firefighting – FLIR thermal sensors make subtle differences in temperature visible, allowing you to see equipment damage and stranded people.
  • Solar Panels – Locate damaged panels by adjusting the temperature alarm settings.
  • Hazmat – Check if a container is full and figure out what is inside with one image.
https://youtu.be/JOwgSrQXY_E

Additional information

Features

Thermal Imaging

Specifications

Zenmuse XT2

Dimensions

With 25 mm lens: 123.7×112.6×127.1 mm With other lens: 118.02×111.6×125.5 mm

Gimbal

Angular Vibration Range

±0.01°

Mount

Detachable

Controllable Range

Tilt: +30° to -90° Pan: ±320°

Mechanical Range

Tilt: +45° to -130° Pan: ±330° Roll: -90° to +60°

Max Controllable Speed

Tilt: 90°/s Pan: 90°/s

Thermal Camera

Thermal Imager

Uncooled VOx Microbolometer

FPA/Digital Video Display Formats

640×512 336×256

Digital Zoom

640×512: 1x, 2x, 4x, 8x 336×256: 1x, 2x, 4x

Pixel Pitch

17 μm

Spectral Band

7.5-13.5 μm

Full Frame Rates

30 Hz

Exportable Frame Rates

<9 Hz

Sensitivity (NEdT)

<50 mk @ f/1.0

Scene Range (High Gain)

640×512: -25° to 135℃ 336×256: -25° to 100℃

Scene Range (Low Gain)

-40° to 550℃

File Storage

MicroSD card*

Photo Format

JPEG, TIFF, R-JPEG

Video Format

8 bit: MOV, MP4 14 bit: TIFF Sequence, SEQ**

Visual Camera

Sensor

1/1.7″ CMOS Effective Pixels: 12 M

Lens

Prime lens Focus at 8 mm FOV 57.12°× 42.44°

Digital Zoom

1x, 2x, 4x, 8x (Live View Only)

Photo Formats

JPEG

Video Formats

MOV, MP4

Video Resolutions

4K Ultra HD: 3840×2160 29.97p FHD: 1920×1080 29.97p

Working Modes

Capture, Record, Playback

Still Photography Modes

Single Shot Burst Shooting(3/5 frames) Interval (2/3/5/7/10/15/20/30 sec)

Video Caption

Supported

Anti-flicker

Auto, 50 Hz, 60 Hz

Storage

MicroSD card Max capacity: 128 GB. UHS-3 required Recommended model: Sandisk Extreme 16/32 GB UHS-3 microSDHC Sandisk Extreme 64/128 GB UHS-3 microSDXC

Supported File System

FAT 32 (≤32GB), exFAT (>32GB)

Image Processing & Display Control

Image Optimization

Yes

Digital Detail Enhancement

Yes

Polarity Control (Black Hot/ White Hot)

Yes
