DJI Dock 2

In the fast-changing realm of unmanned aerial vehicles (UAVs), DJI has been leading the way, continuously innovating drone technology. Here’s what we have learned about the upcoming launch of the Dock 2 in the North American market.

One noticeable enhancement is the significant weight reduction of 68% and size reduction of 75% in Dock 2 in comparison to Dock 1. Weighing just 34kg (75 lbs.), Dock 2 can be easily transported by a team of two.

Like its predecessor, Dock 2 maintains an IP55 rating, ensuring durability against harsh weather conditions, dust, and water. In the event of unfavorable weather during a flight mission, Dock 2 can quickly abort the mission, reducing potential flight risks. With dual RTK antennas, Dock 2 guarantees accurate positioning for a returning aircraft, reducing dependence on its own RTK system.

Advantages of the Dock 2:

  • Easier and quicker setup thanks to its reduced size and weight
  • Extended flight range achieved through an enhanced transmission system and increased flight time
  • Inclusion of Photogrammetry Mapping feature in the mechanical shutter version (M3D)


A single DJI Dock 2 System will require:
  • DJI DOCK 2
  • DJI Matrice 3D Series Aircraft (Thermal or Non-Thermal)
  • DJI Matrice 3D Intelligent Flight Battery
  • DJI RC Pro Enterprise Controller

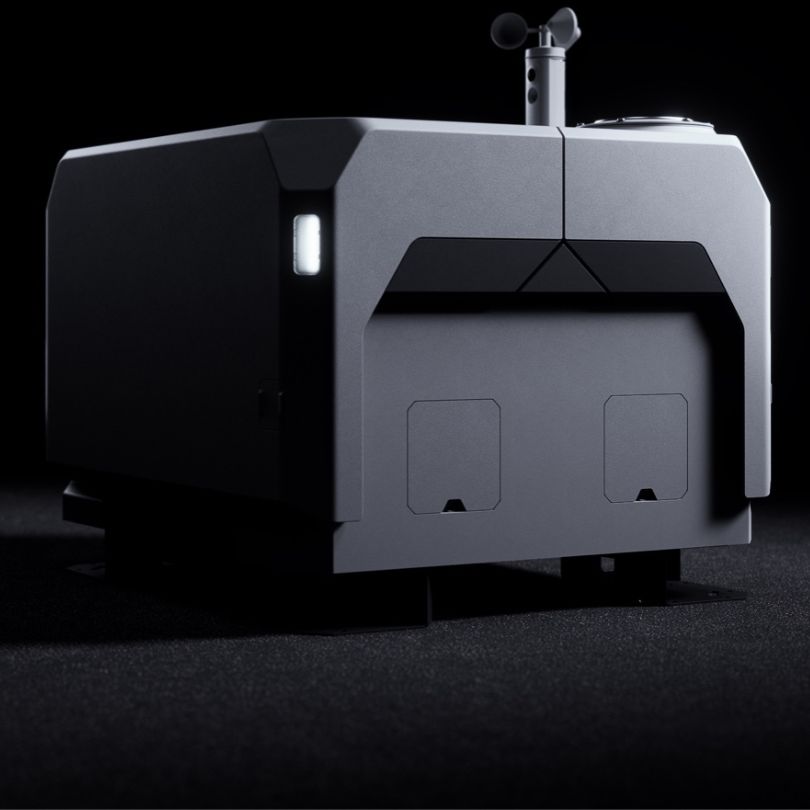

DJI Dock 2 base station
DJI Matrice 3 Dock Series
See Below
DJI Matrice 3D Intelligent Flight Battery
DJI RC Pro Enterprise Controller
DJI Matrice 3D Basic$4180
DJI Matrice 3D Basic 2 Year$4370
DJI Matrice 3D Plus$4560
DJI Matrice 3TD Basic (Thermal)$6050
DJI Matrice 3TD Basic 2 Year (Thermal)$6325
DJI Matrice 3TD Plus (Thermal)$6600
*** DJI Pricing is regulated. Please purchase DJI Enterprise products from DJI Authorized Retailers as you may not receive DJI Support of your product

Technical Specifications

Total weight, excluding drone75 lbs.
DimensionsHatch cover open: length 50″, width 23″, height 16.2″ Hatch cover closed: length 22.4″, width 23″, height 18.3″ mm
Input voltage100V to 240V (AC), 50/60 Hz
Input powerMaximum 1000 watts
Charging output28 volts DC
Charging time20% to 90% in 32 minutes
Working temperature-25°C to 45°C
IP ratingIP55
Drones in use at a single time1
Max wind speed for landing8m/s
Max operating altitude8,202 ft.
RTK base station frequencyGPS: L1 C/A, L2BeiDou2: B1l, B2l, B3lBeiDou3: B1l, B3lGLONASS: L1, L2Galileo: E1, E5B
RTK base station accuracyHorizontal: 1 cm + 1 ppm (RMS)
Vertical: 2 cm + 1 ppm (RMS)
Image transmissionO3 Enterprise Edition
Image transmission frequency2.4000 GHz to 2.4835 GHz
5.725 GHz to 5.850 GHz
AntennaFour antennas, two transmitters, and four receivers, support intelligent switching
Air conditioningTEC air conditioner at 28 volts DC
Backup battery12Ah, 12-volt lead-acid battery
Backup battery life5 hours
Network connectivity1GB ethernet, 4G
SensorsWind speedRainAmbient temperatureWater immersionCabin temperatureCabin humidity
Security camera2x 1080p 151° camera with spotlight. One external and one internal
Lightning protectionAC power: 20 kA protection (rated value), meeting Type 2 of EN 61643-11 and Class II protection level of IEC 61643-1Ethernet: 10 kA protection (total current value), meeting the Category C protection level of EN/IEC 61643-21
Compatible softwareDJI Pilot 2 (with RC Pro Enterprise) DJI FlightHub 2DJI Cloud API
Drone Weight3.1 lbs.
Maximum take-off weight3.54 lbs.
Drone Dimensions13.2″ long,15.6″ wide, 6″ height (excluding propellers)
Max ascent speed13.4 mph (normal mode)
17.8 mph (sport mode)
Max descent speed13.4 mph (normal mode)
13.4 mph (sport mode)
Max flight speedNormal mode, obstacle avoidance turned on: forward flight 33.5 mph, backward flight 26.8 mph side flight 22.3 mph. Sports mode: forward flight 47 mph, backward flight 40.2 mph, side flight 35.7 mph.
Max wind resistanceWind resistance during operation: 26.8 mph
Wind resistance during takeoff and landing: 17.9 mph.
Max take-off altitude1.55 mi.
Max flight time50 minutes
Max operational range6.21 mi.

For more information or to schedule a Live-Demo:
