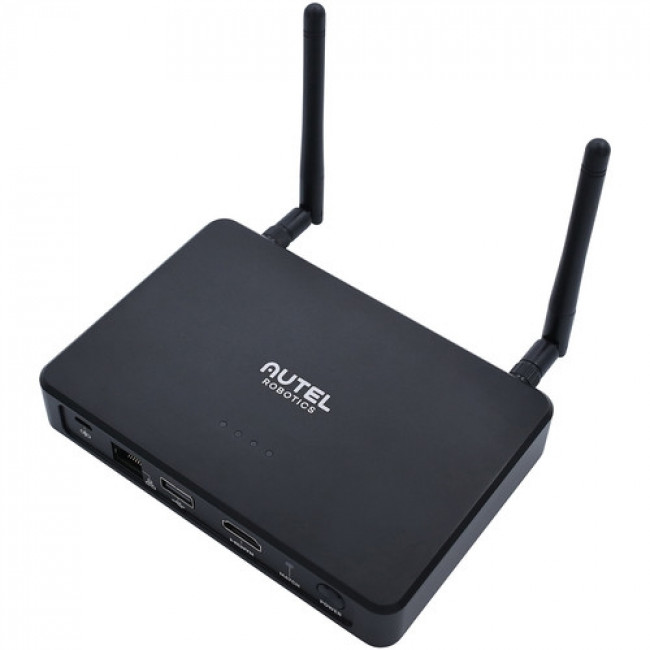

Autel Live Deck

Live Deck provides a live feed to decision makers to enhance decision making during drone mission.



Category: GTIN: 6958265181146

Description

  • 1080P 60FPS / Transmitting video doesn’t have to be low quality. With Live Deck seamlessly output up to 1080p video at EVO’s industry leading 60 Frames Per Second.
  • 4 Hour Battery Life – Disconnecting is what Live Deck is all about

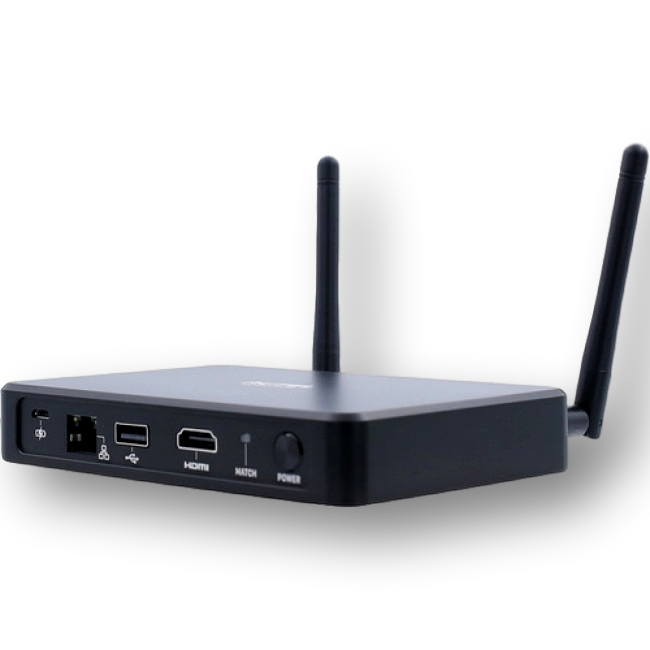

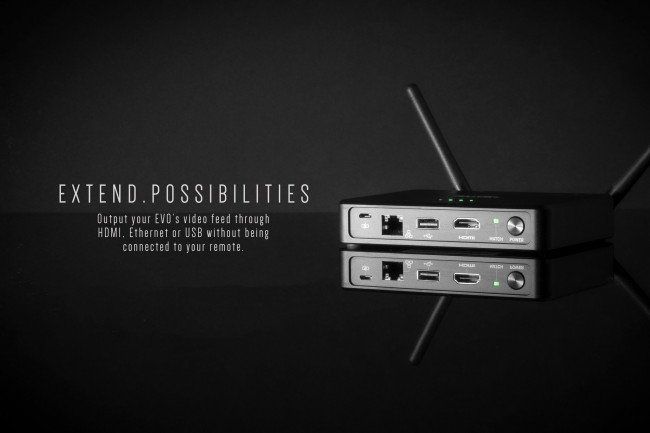

  • 3 Outputs Simultaneously -It doesn’t matter if you want to display your feed on an HD TV or connect to a cloud broadcasting server. Live Deck has you covered with an HDMI, Ethernet and USB port. All 3 can be connected and outputting at the same time, giving the viewer full app control and a clean feed.
  • micro USB port to power Live Deck from wall or power bank /Simultaneous outputting for full app control and clean feed

FAQ



Where in the US is the Autel Evo II being produced?

Bothell, Washington

Is Autel Chinese owned?

Autel is owned by US citizens and Chinese nationals.

Are there plans for Autel to further increase their focus on US sourced products?

Autel is working towards being a USA-only brand.

Is Autel Enterprise a different company from Autel Robotics USA?

Autel Enterprise is the brand of products focused on Public Sector and Enterprise customers in the USA.

Will all of my data be safe with the EVO II Dual?

Data is safe with Autel products. Our products do not rely on LTE, do not connect to servers, and may be operated either without mobile devices, connectivity, or in Airplane modes once local maps are downloaded. Autel has no servers outside of Houston, TX, where users are able to determine if their logs will be stored or not, and at no time are photos, videos, EMEI, or other data transmitted to the Houston, TX servers. Autel does not have access to user data. In other words, user data remains within user control at all times. Contact our customer service department if further detail is required.

Specifications

Hardware



Maximum receiving distance 4.3(mi)
Resolution 1080P/60FPS
Output HDMI, USB, ethernet port
Battery Life 4 Hours
Battery 5000mAh
Voltage (V) 1.2A/3.7V
Operating Environment Temp. (°C) 0℃~40℃ (14℉~104℉)
Operating Environment Temp. (°C) Year: -20℃~25℃ (-4℉~104℉)
Storage Temperature & Humidity 3 months: -20℃~45℃(-4℉~-114℉)
Weight 400g

Communication



Working Frequency (2.4G) 2.4-2.4835GHz
Transmission Power (2.4G) FCC: ≤26 dBm
ISED: ≤26 dBm
CE: ≤20 dBm
RCM: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm
Antenna interface SMA
