Safety Worker Flying Drone

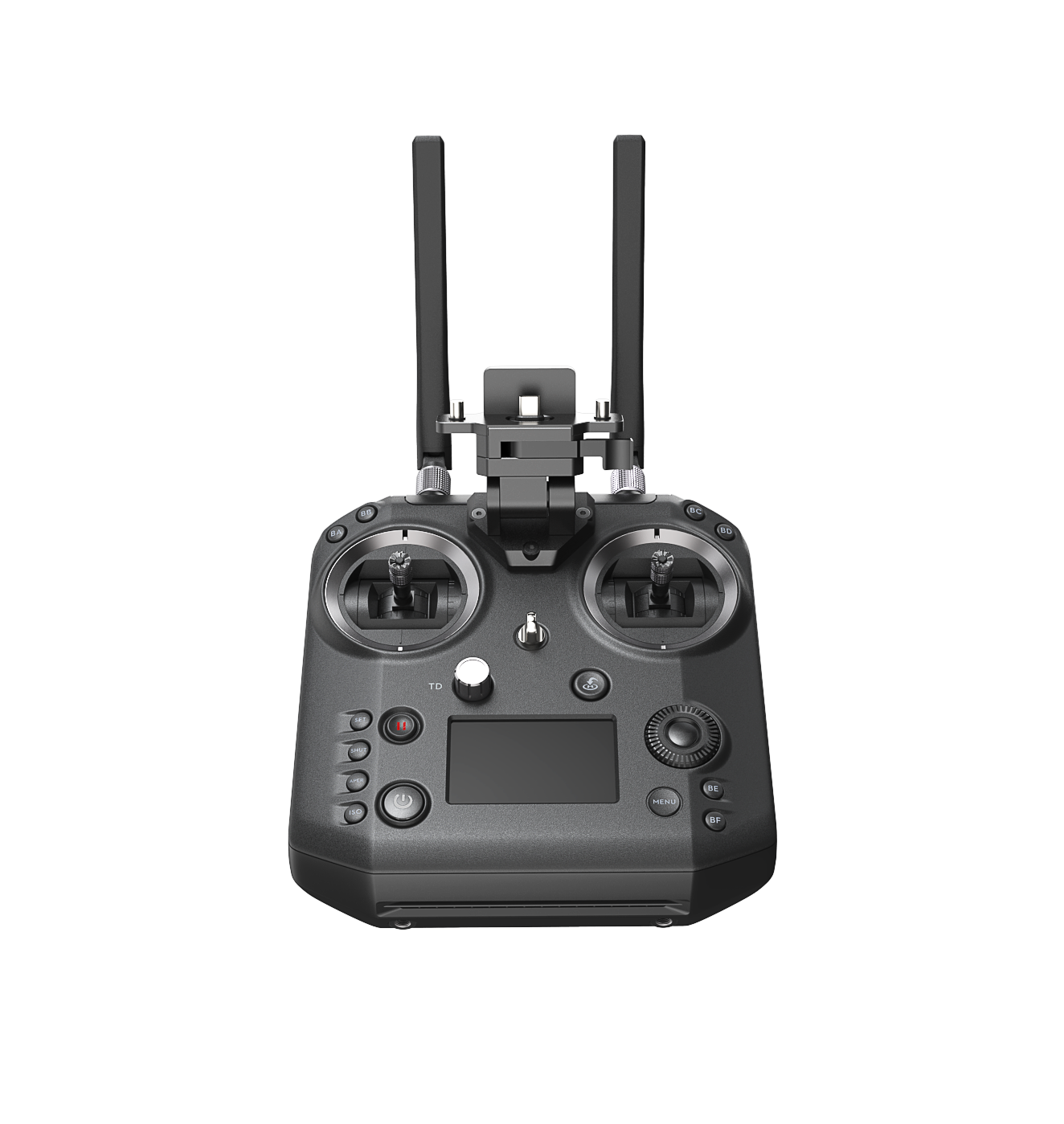

DJI Cendence Remote

$1,499.00

This customizable Cendence remote by DJI is compatible with the Matrice 200 series drones and has the capability to have dual operators for optimal use.

SKU: CENDENCE S REMOTE CONTROLLER Category:

Description

This customizable Cendence remote by DJI is compatible with the Matrice 200 series drones and the Inspire 2. The CrystalSky monitor can mount to the cendence with a mounting bracket, and other hardwear is easily upgradable as the atenas, PCB, and battery are all detachable. The DJI Cendence remote allows for dual operator control, so that one operator can focus on flying the drone, and another could adjust the payloads. Do this by connecting the Cendence with another compatible controller. This remote also contains multiple ports. The SDI and HDMI ports support broadcasting at 1080i fps and 720p 60 fps. The CAN port allows you to connect DJI Focus, or other compatible accessories. The Cendence also features a USBA port that supports other mobile devices. The DJI Cendence also has dual-frequency antennas that significantly increase gain, producing high-quality video transmission. DJI redesigned a patch antenna that substantially increases gain which in turn extends the max transmission distance from 7km to 10km. This allows even more stable and reliable transmissions.

Additional information

Weight 4.5 lbs
Dimensions 5.5 × 2 × 6 in

Specifications

Type GL800A
Operating Frequency 2.400-2.483 GHz; 5.725-5.825 GHz
Max Transmitting Distance (unobstructed, free of interference) 2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC) 5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC)
EIRP 2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC) 5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC)
Power Supply Intelligent Battery (Type: WB37-4920mAh-7.6V)
Intelligent Battery 4923 mAh LiPo
Charging DJI charger
Output Power 20 W (supplying power to DJI CS550 monitor) 12 W (without supplying power to monitor)
Video Output Ports USB, HDMI, SDI
USB Supply Power iOS: 1 A, 5.2 V (Max); Android: 1.5 A, 5.2 V (Max)
Dual User Capability Master-and-Slave connection
Operating Temperature -4 ° to 104 °F (-20 ° to 40 °C)
Storage Temperature Less than 3 months: -4 ° to 113 °F (-20 °to 45 °C) More than 3 months: 72 °to 82 °F (22 °to 28 °C)
Charging Temperature 32 ° to 104 °F (0 °to 40 °C)
Charging Time About 2 hours and 24 minutes (using a 180 W charger)
Supply Power Time About 4 hours (only Master remote controller function enabled and without supplying power to monitor)
Weight 1041 g
