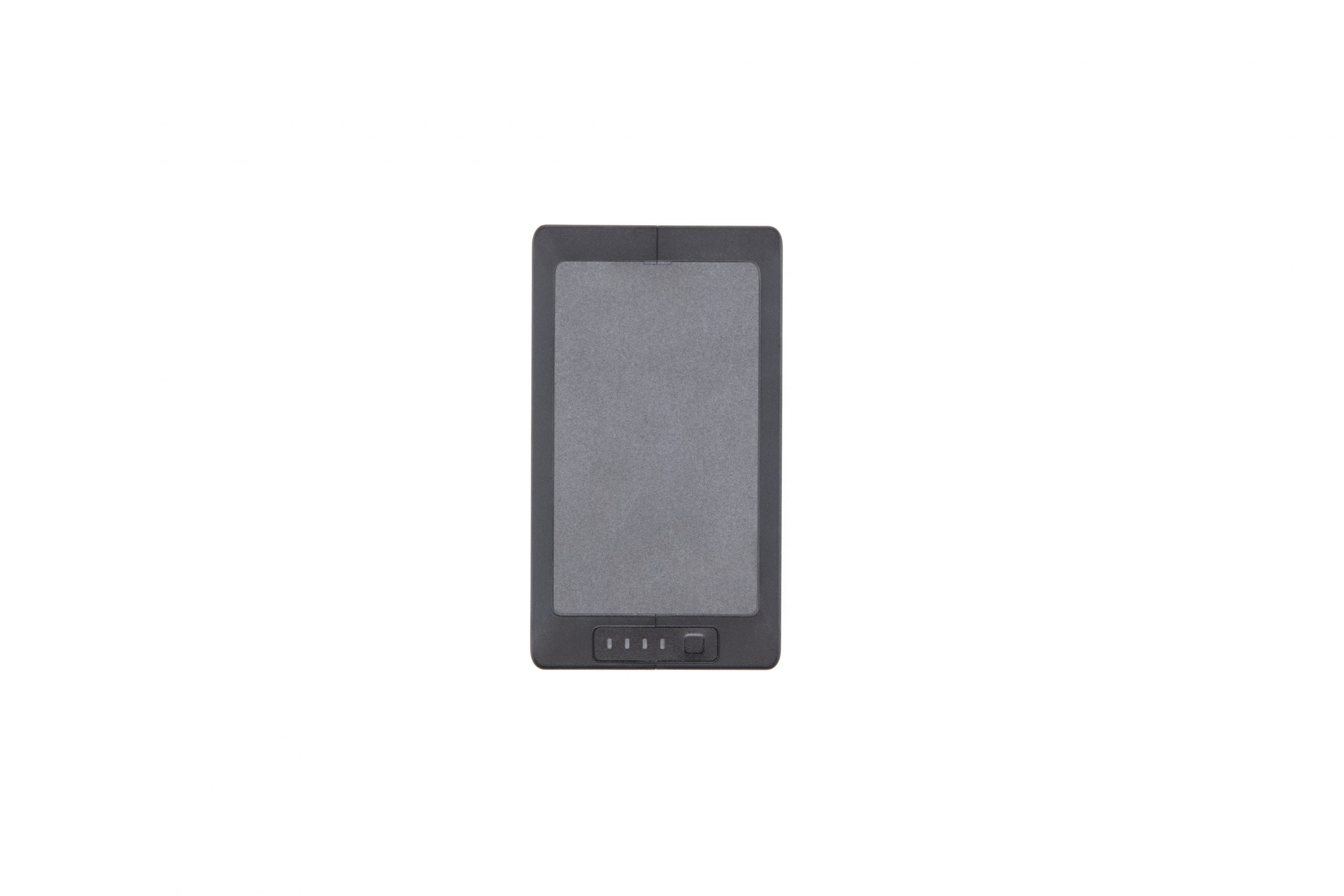

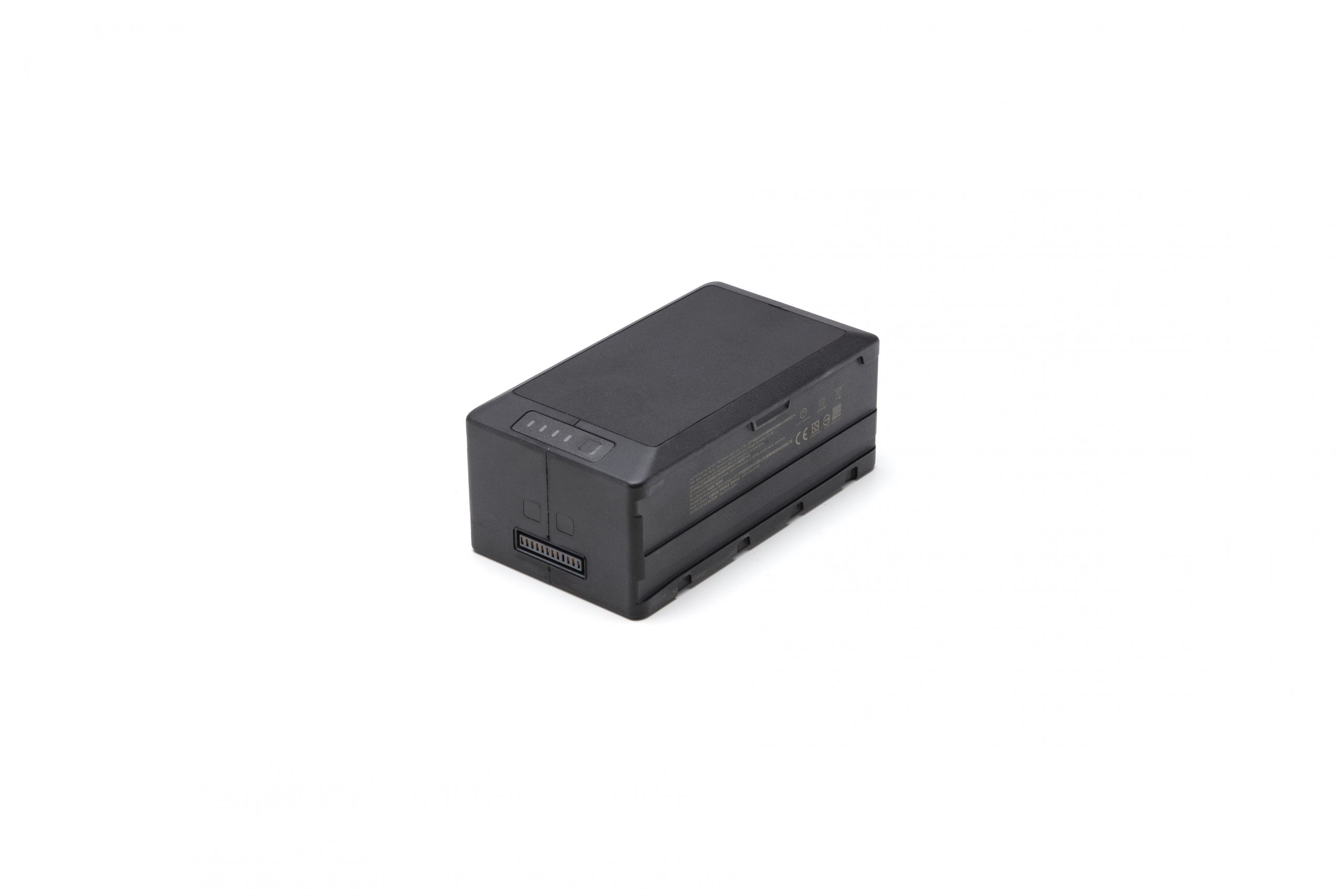

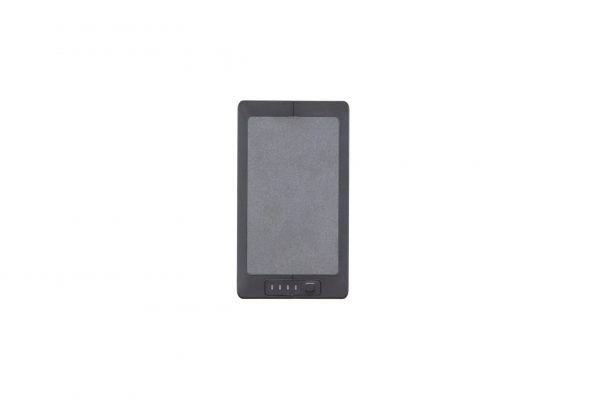

DJI TB60 Intelligent Flight Batteries

The TB60 Batteries by DJI are hot-swappable to allow pilots to change batteries while the drone is still to save time during critical missions.

SKU: TB60 Category:

Description

These TB60 Intelligent Flight Batteries by DJI are hot-swappable and compatible with the M300RTK drone to allow pilots to change batteries while the drone is still on and transmitting. This capability saves time during critical missions and enables more continuous flight.

Specifications

NameTB60
Capacity5935 mAh
Voltage52.8 volts
Battery TypeLiPo 12S
Energy274 Wh
WeightApprox. 1.35 kg
Operating Temperature-4°F to 122°F (-20°C to 50°C)
Ideal Storage Temperature71.6°F to 86°F (22°C to 30°C)
Charging Temperature-4° to 104° F(-20°C to 40°C)
Charging Time Using BS60 Intelligent Battery Station220V input:60 minutes (fully charge two TB60 batteries), 30 minutes (charge two TB60 batteries from 20% to 90%)

110V input:70 minutes (fully charge two TB60 batteries), 40 minutes (charge two TB60 batteries from 20% to 90%)

FAQ

How long does it take to fully charge two TB60 Intelligent Flight Batteries? With 220V power supply: It takes about 60 minutes to fully charge two TB60 Intelligent Flight Batteries; and about 30 minutes to charge them from 20% to 90%. With 110V power supply: It takes about 70 minutes to fully charge two TB60 Intelligent Flight Batteries, and about 40 minutes to charge them from 20% to 90%.
How many batteries can the Battery Station charge at the same time? It can simultaneously store eight TB60 Intelligent Flight Batteries and four WB37 Intelligent Batteries. It can charge two TB60 Intelligent Flight Batteries and one WB37 Intelligent Battery at the same time. Batteries with the highest battery levels will be recharged first, followed by the ones with lower levels.

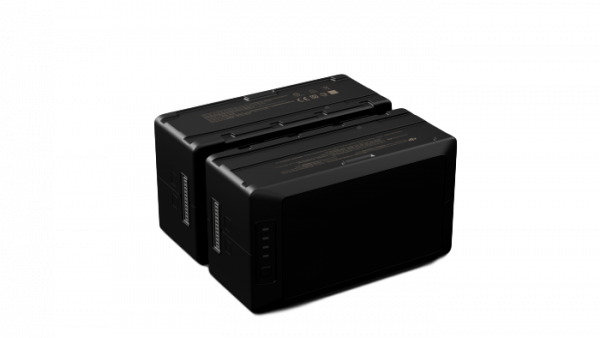

How do I maintain the TB60 Intelligent Flight Battery? 1. Before using, mark two TB60 Intelligent Flight Batteries as a pair that will always be charged/discharged together to ensure optimal performance. 2. Do not charge immediately after a flight. Let the battery cool down to room temperature before charging. 3. The ideal charging temperature of TB60 Intelligent Flight Battery is 15 °C – 40 °C; 4. The ideal storage temperature of TB60 Intelligent Flight Battery is 22 °C – 30 °C. Make sure they are stored in an environment that is free of moisture and not in direct sunlight. 5. If a battery won’t be in use for more than 10 days, please discharge it until the battery level drops to 40% – 65%, and store it properly. Charge and then discharge the battery every 3 months to keep it healthy.
Can the TB60 Intelligent Flight Battery be used in low-temperature environments? The operating temperature of the TB60 Intelligent Flight Battery is -20°C to 50°C. When the battery is used in a low-temperature environment, note that the battery life will be reduced. To optimize performance in the cold, it is recommended to warm the battery up to 15 °C before use. When charging the batteries in an environment between -20 °C and 5 °C, the self-heating function will be activated to raise the battery’s temperature to above 5 °C. Once installed on the aircraft and the power is turned on, if the battery’s temperature is low, it will automatically self-heat to keep the temperature at about 16 °C to 20 °C.
Does the M300 RTK support TB50 / TB55 Intelligent Flight Batteries? No.
Can TB60 Intelligent Flight Battery be carried onboard an airplane? The capacity of the TB60 Intelligent Flight Battery is 274 Wh and cannot be carried on board airplanes according to airline regulations.
Why is the battery warm while in storage? When the battery is stored for a long time, to ensure storage safety and to extend battery life, the battery will automatically start self-discharging to about 65%. It’s normal for the battery to feel slightly warm during this process.
Can the drone take off when two batteries are at different battery levels? The M300 RTK can take off if the voltage discrepancy of the two batteries is within 0.7 V. If it is unable to take off, the app will inform you that “the power discrepancy in the two batteries is too large”.

Documents

Product Brochure
