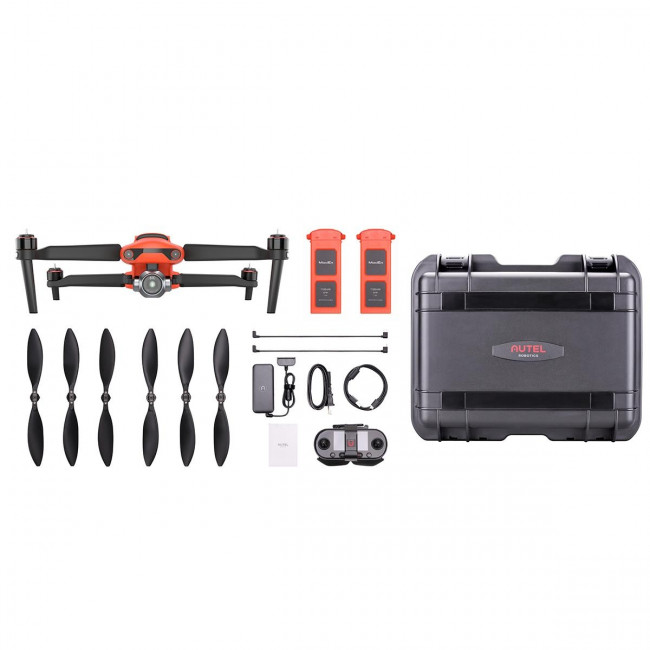

Autel Evo II Pro 6K Rugged Bundle

The EVO II Pro 6K has superior image quality in low and limited lighting conditions. The 1″ CMOS sensor is super sensitive and takes amazing pics!

Category: GTIN: 6958265181146

Description

Upgrade your kit to its full potential and achieve new visual heights with EVO II Pro. With an 1-inch sensor camera capable of capturing 6K video up to 30fps, you are now able to record stunning detail not possible before on an aerial platform of this size. Featuring HDR video, intuitive camera controls, and an adjustable aperture with a max ISO of 12,800, EVO II Pro allows you to have exceptional performance and flexibility in any shooting environment

PERFORMANCE

A tool that works as hard as you do. Designed with portability in mind, EVO 2 is built with quality craftsmanship. Each component of EVO 2 goes through multiple tests before assembly and every aircraft must pass a rigorous flight test before it leaves the factory

  • Boasts flight times up to 40 minutes with a range of 5.5 miles
  • 2.4Ghz antennas for up to a 9km range and better reception in urban areas
  • 6K Video,  1-inch sensor, max ISO of 12,800, 20MP Stills.
  • 12 image sensors create a 3D world for omnidirectional obstacle avoidance
  • Built-in 3.3-inch OLED display allows pilots the freedom to fly without a mobile device
  • Top speed of 45mph (72kph) allowing to go farther, faster

REMOTE CONTROLLER – NO NEED FOR PHONE

Included with EVO 2 is a smart controller featuring a built-in 3.3-inch OLED display, eliminating the need for a mobile device. With a four hour battery life and an ergonomic, compact design, pilots can easily pack and fly on the go.

CAMERA – 6K VIDEO , 10-12 BIT RECORDING, 1-INCH SENSOR

PHOTOGRAPHY
With EVO II Pro, photos have never looked so good. Re-experience every moment with exceptional low-light photography and time-lapse capabilities made possible with our 1-inch sensor. With an adjustable aperture from f/2.8-f/11, max ISO of 12,800, built-in HDR bracketing, and 20MP stills, pilots now have unmatched performance and flexibility

CINEMATOGRAPHY
Professional film creators will find camera controls and features that they have come to expect as the industry standard. Capable of capturing 6K video up to 30fps and 4K video up to 60fps, our EVO II Pro features built-in HDR bracketing and HDR video, 10- 12 bit recording, H.265 codec, and A-LOG gamma curve

MAPPING
Featuring our new 6K 1-inch sensor, EVO II Pro gives users the highest quality pixels available on a foldable drone. Flexible and intuitive mission planning allows the pilot to create custom waypoints for any job. With SDK available soon for third-party integration, executing your mission is easier than ever.

INTELLIGENT FLIGHT MODES

Featuring an array of Intelligent Flight modes, EVO 2 also includes the most comprehensive and user-friendly obstacle avoidance system ever developed. Complete with 12 image sensors, EVO 2 allows you to be fully immersed within any activity while capturing every second of it.

  • Dual-core powered object detection recognizes up to 64 subjects at once including people, vehicles, and animals
  • 12 high performance optical image sensors create an omnidirectional 3D world for EVO 2 to navigate through
  • Follow subjects autonomously around obstacles at high speeds using Autel’s patented Dynamic Track 2.0
  • Gesture Control allows the pilot to command the aircraft hands-free and enable video recording, photo capture, and Intelligent Flight modes

FAQ



Where in the US is the Autel Evo II being produced?

Bothell, Washington

Is Autel Chinese owned?

Autel is owned by US citizens and Chinese nationals.

Are there plans for Autel to further increase their focus on US sourced products?

Autel is working towards being a USA-only brand.

Is Autel Enterprise a different company from Autel Robotics USA?

Autel Enterprise is the brand of products focused on Public Sector and Enterprise customers in the USA.

Will all of my data be safe with the EVO II Dual?

Data is safe with Autel products. Our products do not rely on LTE, do not connect to servers, and may be operated either without mobile devices, connectivity, or in Airplane modes once local maps are downloaded. Autel has no servers outside of Houston, TX, where users are able to determine if their logs will be stored or not, and at no time are photos, videos, EMEI, or other data transmitted to the Houston, TX servers. Autel does not have access to user data. In other words, user data remains within user control at all times. Contact our customer service department if further detail is required.

Specifications

Camera



Image Sensor 1″ CMOS
Pixels 20MP
Perspective 82°
Lens EFL: 28.6 mm
Aperture: f/2.8–f/11
Focus Distance: 1m to any distance (with autofocus mode)
ISO Range Video: 100-6400 (auto)
Photo: 100-12800 (auto)
Zoom 1-8x (Max 3x lossless)
Still Photography Modes

Single Shot
Burst shooing: 3/5 frames
Automatic Exposure Bracketing (AEB):
3/5 bracketed frames at 0.7 EV Bias
Timelapse:
     JPG:2s/5s/7s/10s/20s/30s/60s
     DNG:5s/7s/10s/20s/30s/60s
HyperLight:support (under 4K JPEG format)
Long Exposure: Max 8s
HDR imaging: (under 4K JPEG)

Still Photography Resolution 8000*6000 (4:3)
7680*4320 (16:9)
4000*3000 (4:3)
3840*2160 (16:9)
Video Format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Video Resolution 6K 5472*3076 p30/p25/p24
4K 3840*2160 p60/p50/p48/p30/p25/p24
2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24
1080p 1920*1080 p120/p60/p50/p48/p30/p25/p24
Max Bitrate 120Mbps

Aircraft



Takeoff Weight 2.6 lbs (1191 g)
Max Takeoff Weight 4.4 lbs (2000 g)
Diagonal Wheelbase 15.6 inches (397 mm)
Aircraft Battery 7100 mAh
Max Flight Time (standard) 40 min
Max Hovering Time (standard) 35 min
Max Level Flight Speed (Standard) 45 mph (20 m/s) (Ludicrous)
Max Ascent Speed 18 mph (8 m/s) (Ludicrous)
Max Descent Speed 9 mph (4 m/s) (Ludicrous)
Max Takeoff Altitude 4.3 miles (7000 m)
Max Wind Resistance Force 8 wind
Operating Environment Temp 32-104°F (0-40°C)
Working Frequency (2.4G) 2.4~2.4835GHz
Transmission Power (2.4G) 2.4~2.4835GHz
FCC: ≤26 dBm
ISED: ≤26 dBm
CE: ≤20 dBm
RCM: ≤20 dBm
SRRC: ≤20 dBm
Hover Precision Vertical:
± 0.02m (with visual positioning in normal operation)
± 0.2m (with GPS in normal operation)
Horizontal:
± 0.02m (with visual positioning in normal operation)
± 0.2m (with GPS in normal operation)

Sensing System



Sensing System Type Omnidirectional Binocular Sensing System
Forward Accurate Measuring Range: 0.5 – 20m
Detection Range: 0.5 – 40m
Effective Sensing Speed: < 15 m/s
FOV: Horizontal: 60°, Vertical: 80°
Backward Accurate Measuring Range: 0.5 – 16m
Detection Range: 0.5 – 32m
Effective Sensing Speed: < 12 m/s
FOV: Horizontal: 60°, Vertical: 80°
Upward Accurate Measuring Range: 0.5 – 12m
Detection Range: 0.5 – 24m
Effective Sensing Speed: < 6 m/s
FOV: Horizontal: 65°, Vertical: 50°
Downward Accurate Measuring Range: 0.5 – 11m
Detection Range: 0.5 – 22m
Effective Sensing Speed: < 6 m/s
FOV: Horizontal: 100°, Vertical: 80°
Sides Accurate Measuring Range: 0.5 – 12m
Detection Range: 0.5 – 24m
Effective Sensing Speed: < 10 m/s
FOV: Horizontal: 65°, Vertical: 50°
Service Environment Textured/patterned ground and adequate illumination (> 15 lux, normal indoor environment with fluorescent lamp on)
Upward: diffuse reflecting surface with reflectivity above 20% (wall, tree, human, etc.)
Downward: textured/patterned ground and adequate illumination (> 15 lux, normal indoor environment with fluorescent lamp on)
Upward: diffuse reflecting surface with reflectivity above 20% (wall, tree, human, etc.)

Gimbal



Operation Range Pitch: -135° to +45°
Yaw: -100° to +100°
Operation Range Pitch: -90° to +30°
Yaw: -90° to +90°
Stability More Stable with 3 Axies
Max Control Speed (Tilt) 300°/s
Angular Vibration Range (°) ±0.005°

Remote Controller and Transmission



Max Signal Transmission Distance 9km FCC, 5km CE
Working Frequency (2.4G) 2.4~2.4835GHz
Transmission Power (2.4G) 2.4~2.4835GHz
FCC: ≤26 dBm
ISED: ≤26 dBm
CE: ≤20 dBm
RCM: ≤20 dBm
SRRC: ≤20 dBm
Real-Time Transmission Quality 720p@30fps / 1080p@30fps
Max Bitrate of Real-time Transmission 40Mbps
Remote Controller Battery 5000mAh
Operating Hours 3h
Charging Time 2h Fast Charging
Display 3.26-inch OLED screen
854 (W)*480 (H) pixels
Preview video without the need for connecting to a mobile phone
1.7A@3.7V

Battery



Battery (mAh) 7100mAh
Voltage (V) 11.55
Transmission Power (2.4G) 13.2
Battery Type LiPo 3S
Battery Energy 82Wh
Weight (g) 365
Charging Temperature Range (°C) 5~45℃
Storage Temperature & Humidity -10~30℃,65±20%RH
Recommended Storage Temperature 22~28℃
Max Charging Power Consumption (W) 93W
Charging Time 90min

Charger



Input 100-240 V, 50/60 Hz, 1.5A
Output 13.2 V ⎓ 5 A
5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage 13.2 ± 0.1 V
Rated Power 66 W

APP



iOS Autel Explorer
Android Autel Explorer

Storage



SD Storage Standard: 32 GB,
max. support 256GB ( UHS-3 rating required )
Internal Storage 8GB
