Sale!

Teledyne FLIR SIRAS

Original price was: $9,760.00.Current price is: $7,000.00.

Teledyne FLIR SIRAS TV128 Standard Bundle (Radiometric) The SIRAS is a cost-effective, IP54-rated professional drone designed for ease of use and equipped with an interchangeable payload system, making it ideal for industrial inspections, firefighting, law enforcement, and search-and-rescue missions. Featuring front collision avoidance, hot-swappable batteries, a 31-minute flight time, and unrestricted by geofencing, it empowers professional UAV pilots to operate safely and efficiently in any mission-critical environment.

Offering two quick-connect payload options: the Vue® TV128, which includes a 128x zoom 16 MP visible camera and a 5x zoom, 640×512 resolution radiometric FLIR Boson® thermal camera for precise temperature measurement, and the Vue TV128+, featuring the same visible camera but with the Boson+ for enhanced thermal sensitivity and image clarity. Both payloads utilize Teledyne FLIR’s patented MSX® technology for superior thermal imagery and situational awareness. Prioritizing data security, SIRAS stores all imagery locally on a microSD card with no cloud connectivity, and pilots can operate without an online profile, ensuring data privacy. This powerful combination of thermal performance, adaptability, and secure data handling makes SIRAS an ideal choice for professionals.

Out of stock

Description

What’s Included

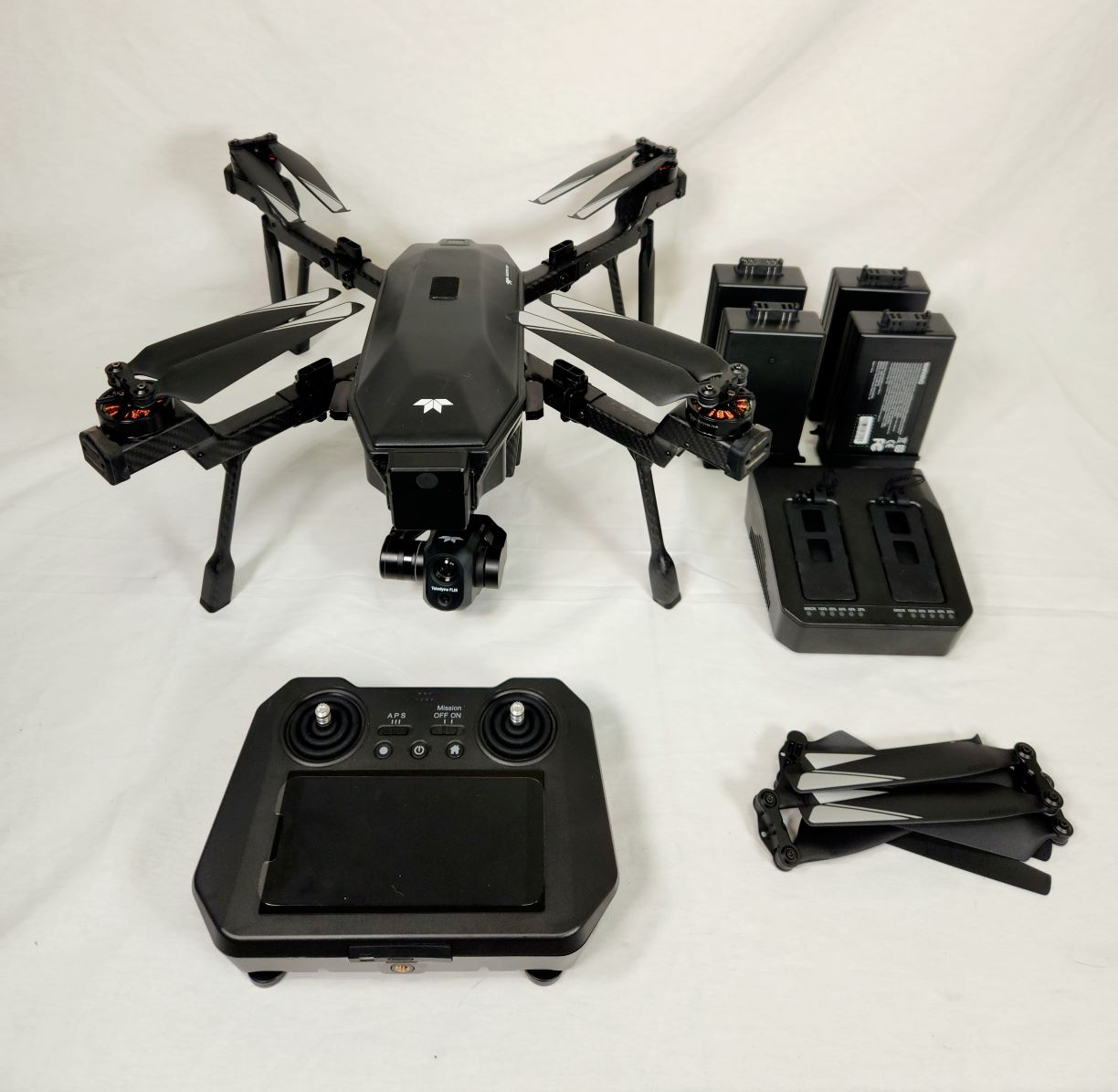

  • Siras Aircraft

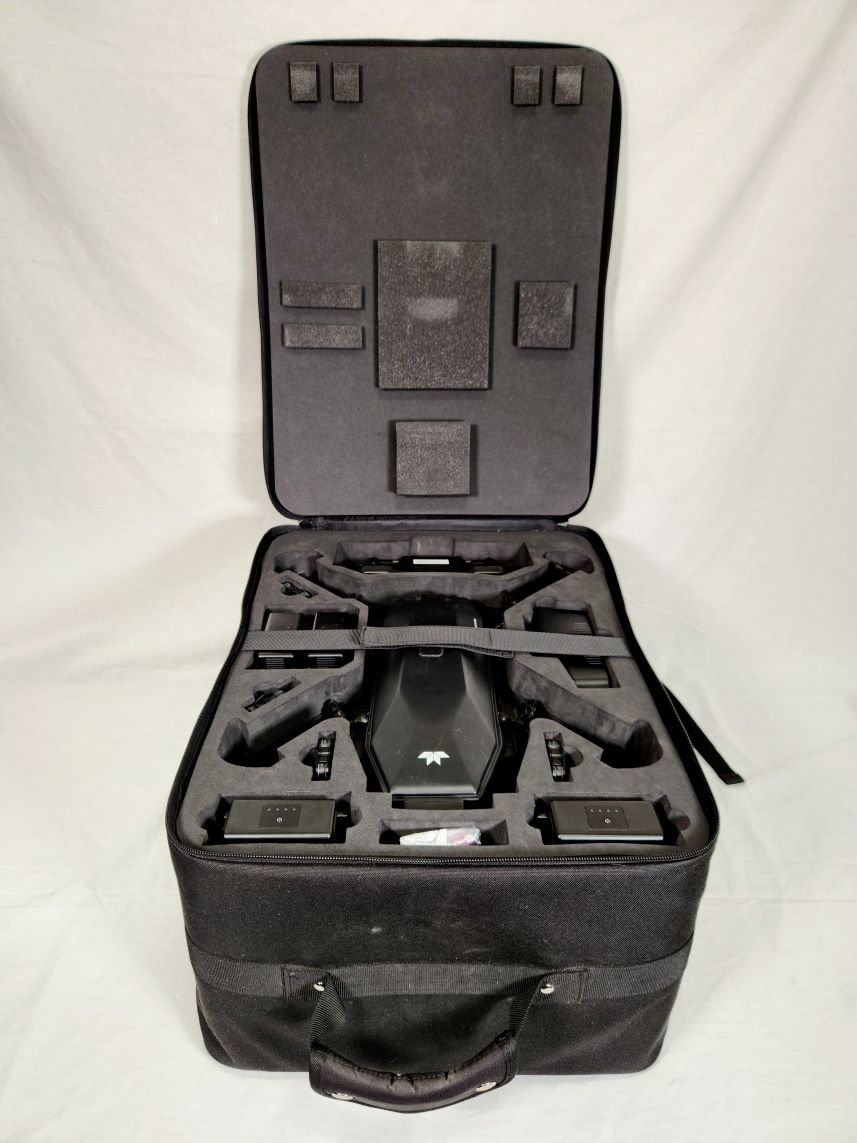

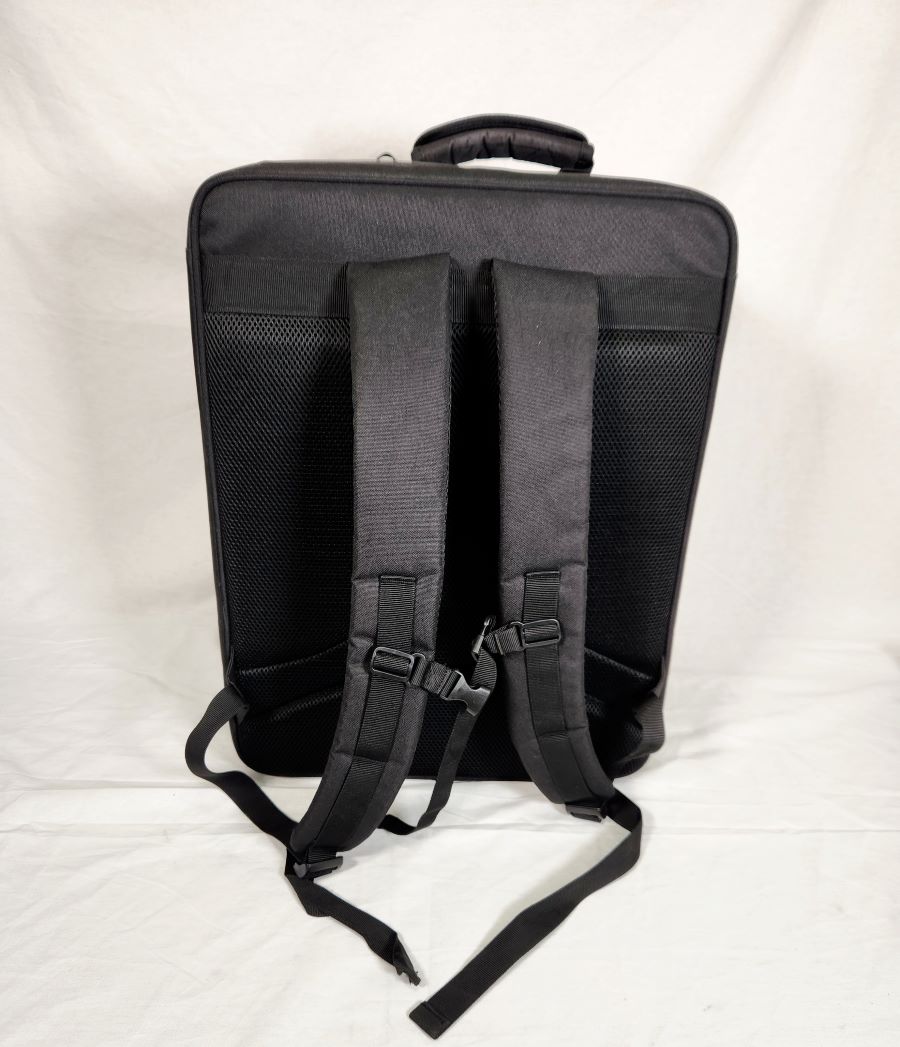

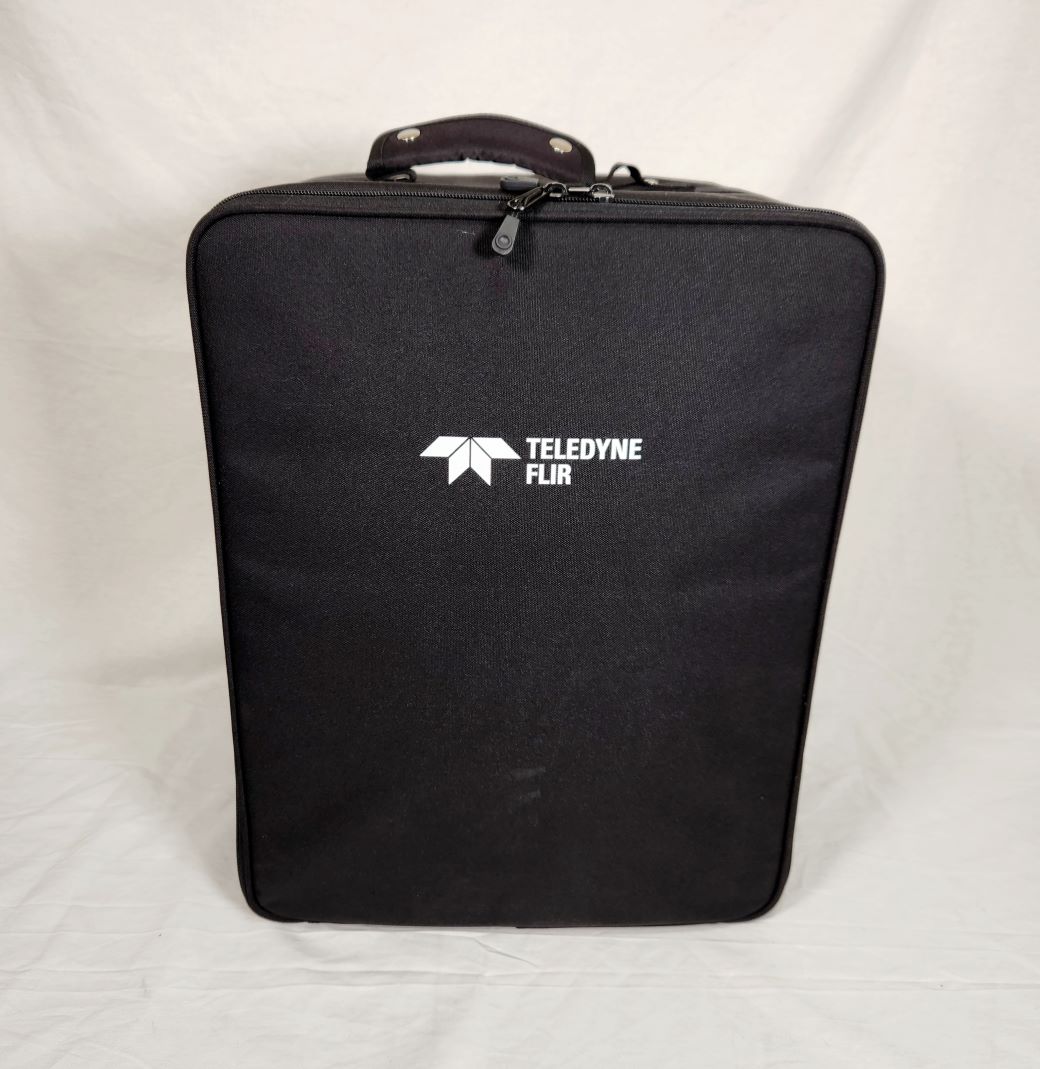

  • Soft Backpack
  • TV128 640X512 Thermal Payload
  • Smart Controller
  • Charging Hub
  • 6 Batteries
  • Spare Propellers

See and do more with clear thermal and visible imagery + FLIR MSX

Real time, high-resolution imagery provides
critical data for immediate decision support
and post-processing

  • Measure temperature from the air
  • Zoom up to 5x with 640×512 FLIR Boson+ thermal camera
  • Pinpoint details with 16MP visible resolution and 128x zoom
  • Compatible with AirData™ UAV and DroneLogbook™ software

SECURE FLIGHT DATA
FROM AN AFFORDABLE
AND FLEXIBLE AIRCRAFT

Operate in rugged environments with data
security and flexibility for future payload
needs

  • Data safely stored on an onboard microSD card
  • No online account is required for flight
  • Future-proofed with quick-connect, swappable gimbal
  • IP-54-rated dust and moisture resistance

FLY MISSIONS SAFELY WHERE
AND WHEN NEEDED

Get in the air quickly without restrictive geofencing and fly for up to 31 minutes

  • Fly within two minutes of power on with no geofencing
  • Maximize time in the air with 31-minute flight time and hot-swappable batteries
  • Maintain connection around obstacles with dual-band 2.4/5.8 GHz
  • Detect objects day and night with radar-based front collision avoidance


Aircraft

Collision Avoidance – Front Facing Radar: up to 30 m, when flying <5 m/sec speed
Ground detection via underside sensors

Default Ground Speed – 5 m/sec (11.2 mph)

Disconnect Return To Home – Yes

Foldable Props – Yes

Geo-Fencing – None

Hover Accuracy Vertical: ± 0.5 m (± 1.6 ft) Horizontal: ± 1.5 m (± 5 ft)

Ingress Protection – IP 54 (airframe, controller, and payload)

Maximum Ascent Speed – 6 m/sec (13.4 mph)

Maximum Decent Speed – 4 m/sec (9 mph)

Maximum Descent Speed – 4 m/sec (9 mph)

Maximum Ground Speed – 18 m/sec (40 mph)

Night Flight Beacons – Yes (red and white), on/off & blink options

Operating Environment – 10°C to 40°C (10 °F to 104 °F)

Take Off Readiness – 2 mins after power ON

Weight [including battery] – 3.1 kg (6.8 lb)

Wind Resistance – 10 m/s (22.4 mph)

Battery

25 Pct Battery Warning – Yes, visual and audio signal

Battery Power – 6,000 mAh Charging

Temperature Range (Celsius) – 5 °C to 50 °C (41 °F to 122 °F)

Charging Time – <45 min

Hot Swappable Batteries – Yes

Max Charging Current (A) – 6 A

Maximum Flight Time – 31 min (rated)

Maximum Hovering Time – 28 min (rated)

Return To Home – Yes. 25% Battery

Storage Temperature And Humidity – Room temperature and <70% is recommended

Imaging & Optical

EO Camera Optics – Effective Focal Length (EFL) 4.8 mm, 67° HFOV, F/# 1/2.3

EO Camera Resolution – 16 MP with 20 MP mapping mode, 128x zoom

FLIR MSX – Yes

IR Camera Optics – Effective Focal Length (EFL) 13.6mm, 32° HFOV, F/# 1.0

IR Camera Resolution – FLIR Boson, 640 x 512, radiometric, 5x zoom

IR Video Frame Rate – 60 Hz

Radiometric Features – Spot meter, Isotherms, Region of Interest (ROI)

Remote Controller And Transmission

Built-In Battery – 210 min

Display Brightness – 1,000 lumens

Display Latency – <1 sec

Layout – Mode 2 (default)

Operating Distance – 9 km (6 miles) – zero interference and no obstructions 3.2 km (2 miles) is typical limit in most settings

Operating Frequency – Dual Ban: 2.4 GHz / 5.8 GHz

Transmission Quality – 1080P, 30 fps

Storage

Internal Storage – Formatted 64 GB micro SD (provided with aircraft)SD Storage1 GB

Additional information

Weight 30 lbs
Dimensions 22 × 17 × 12 in
