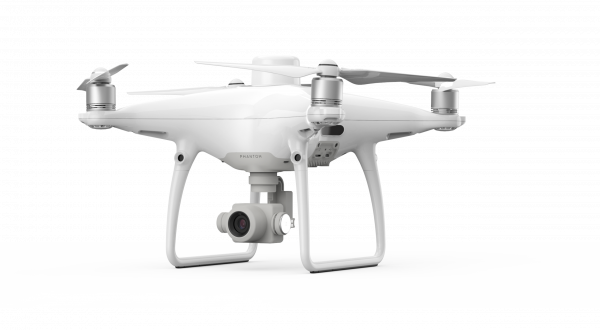

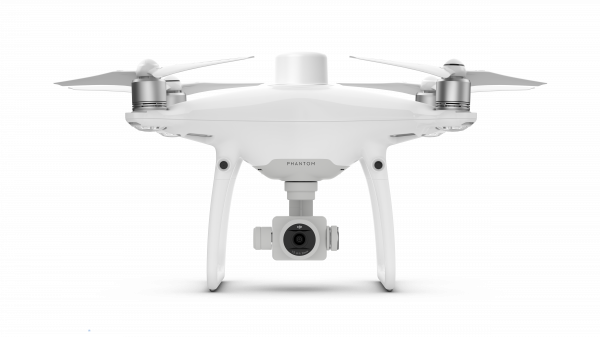

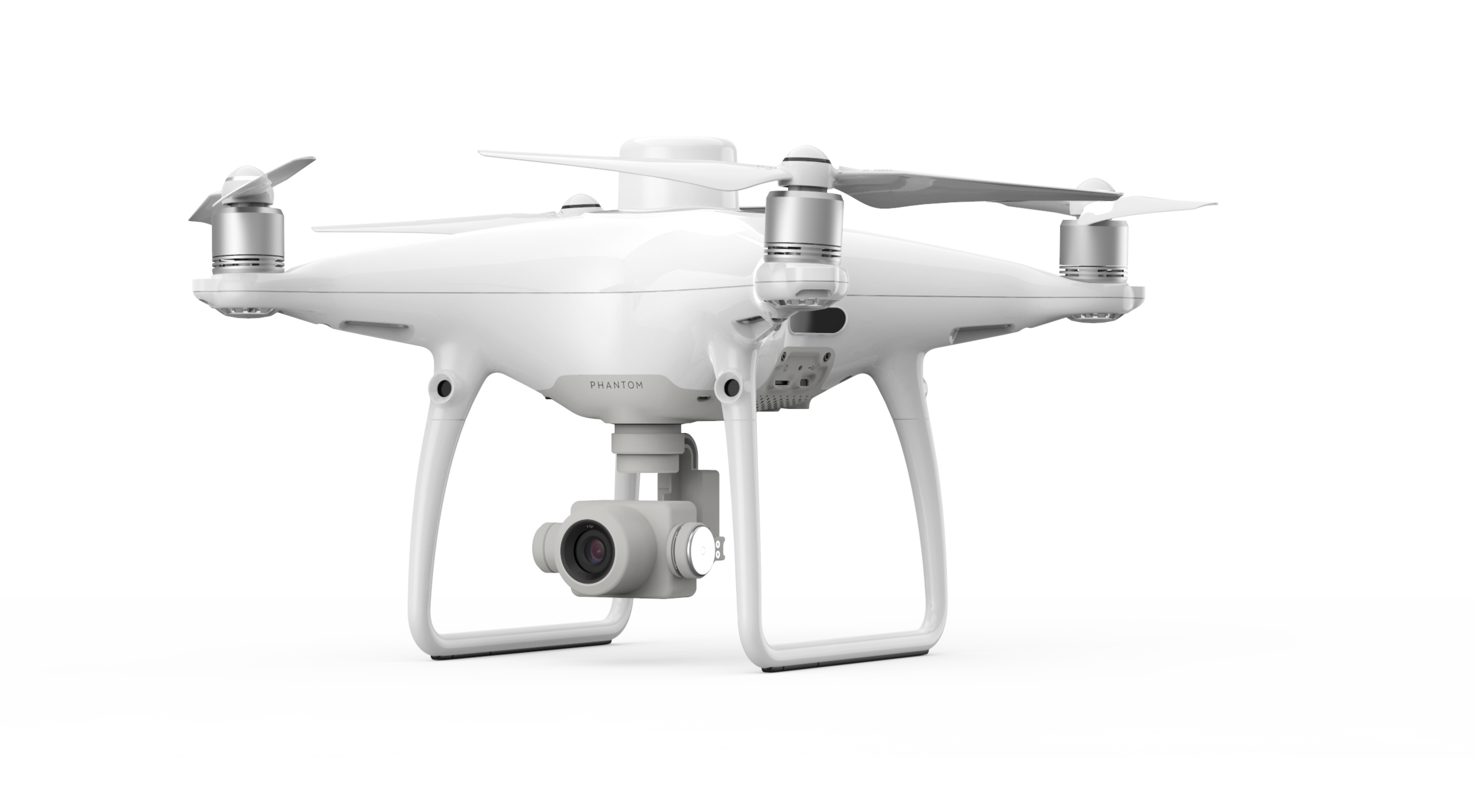

DJI Phantom 4 RTK

The Phantom 4 RTK is perfect for precise capture of complex surveying, mapping & inspection work. Premium modules optimize flight safety and data precision.

SKU: P4RTK Category:

Description

The Phantom 4 RTK by DJI is perfect for precisely capturing complex surveying, mapping and inspection work. The new RTK module from DJI is programmed directly into the Phantom 4 RTK so that you receive data in real-time at centimeter-level. The Phantom 4 RTK also includes a GNSS module which enhances the flight stability in a poor signal area such as a large city. These premium modules enable the Phantom 4 RTK to optimize flight safety and data precision. Connect your Phantom 4 RTK to the D-RTK 2 Mobile Station for optimum positioning.

Features

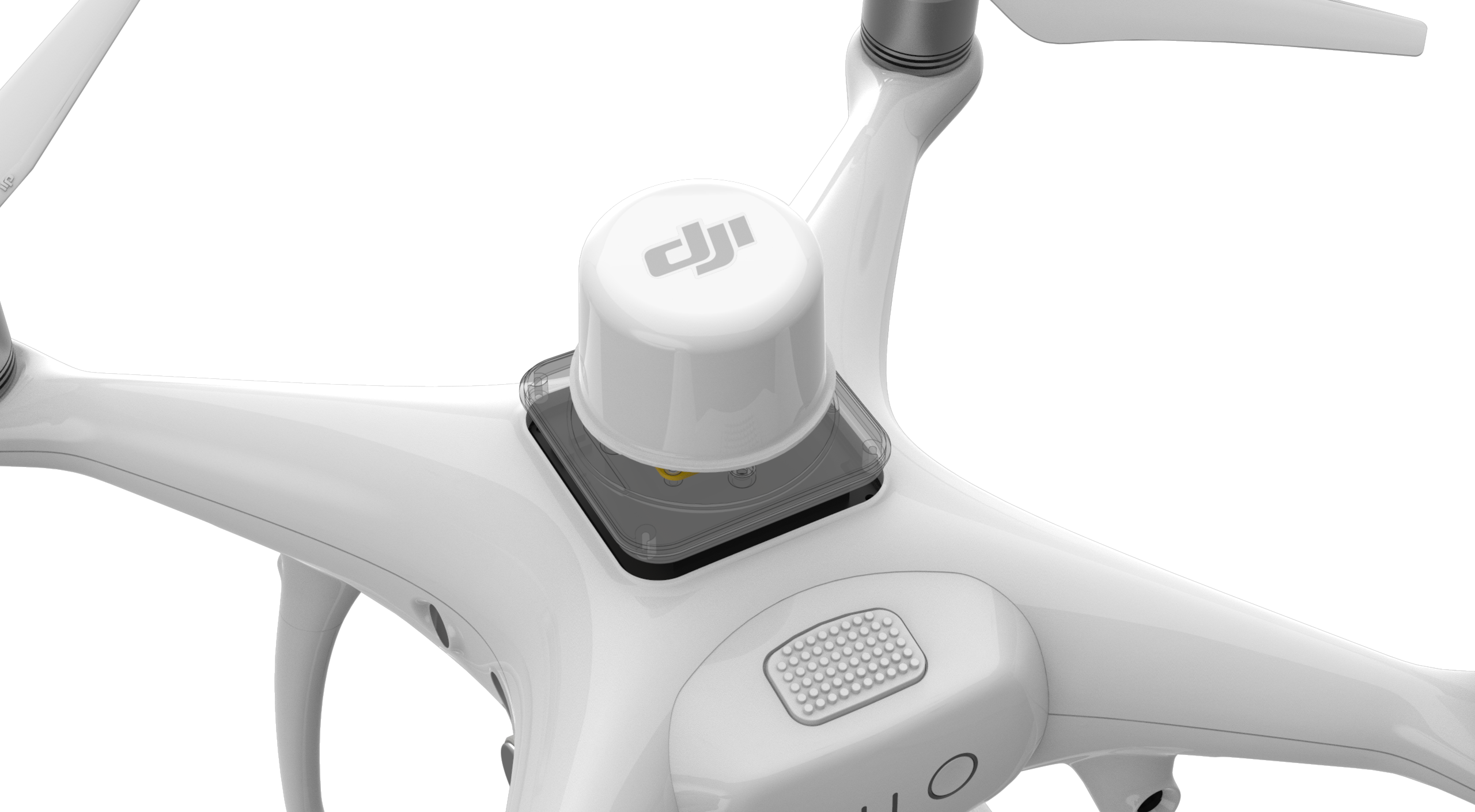

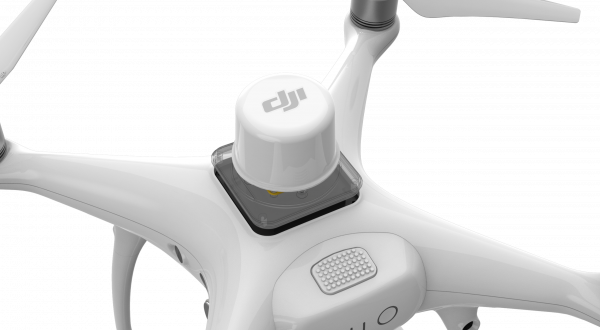

  • RTK Module
  • 1″ CMOS Sensor
  • GS RTK APP
  • TimeSync
  • OcuSync
  • D-RTK 2 DNSS Mobile Station

Additional information

Weight 8.3 lbs
Dimensions 16 × 14 × 9 in
Features

30 Minute Max Flight-time, D-RTK 2 Combatibility, OcuSync, Powerful Display Modes, Precise Imaging, Time Sync

Ideal Applications

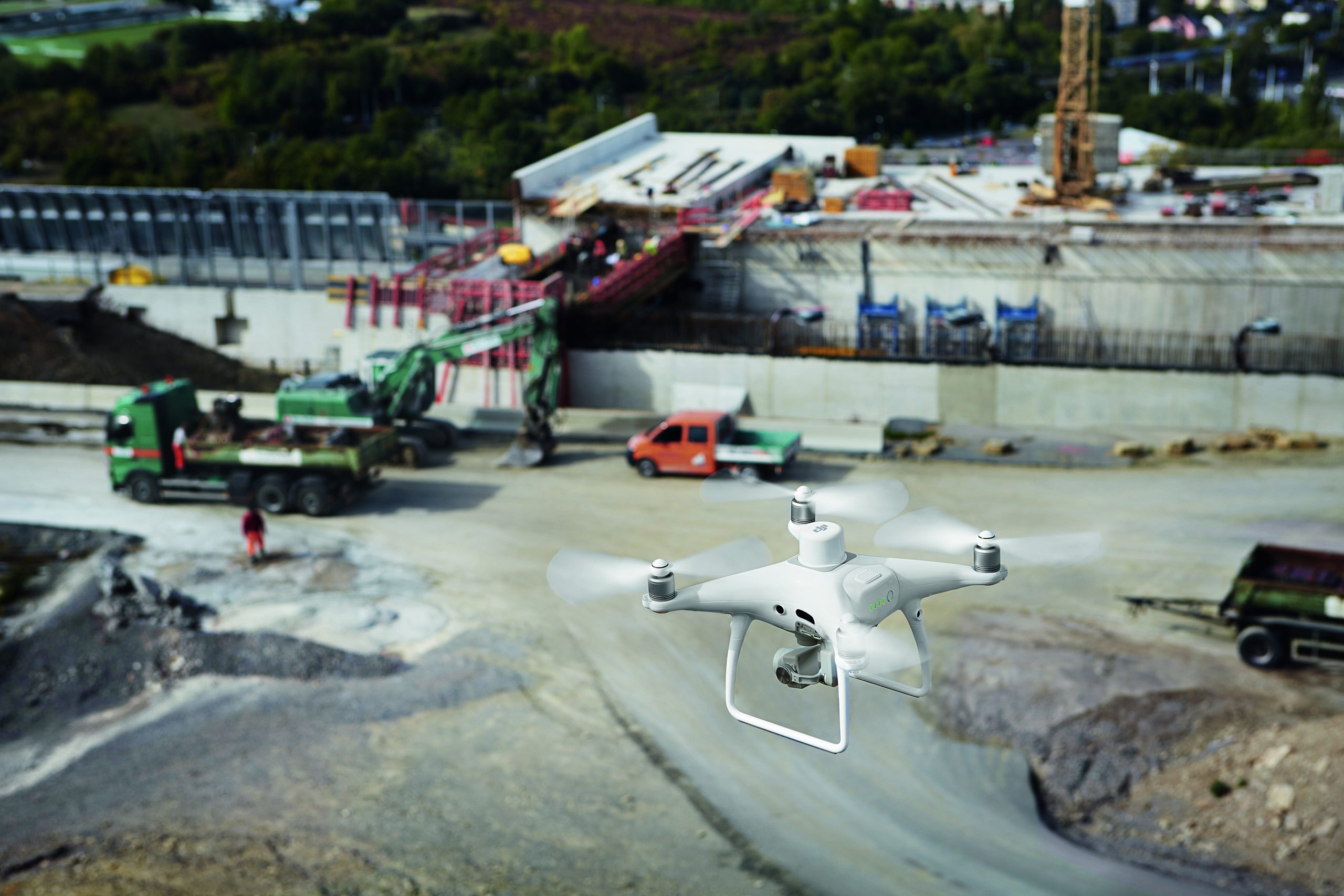

Construction – Surveying, mapping, and inspecting.

Specifications

Takeoff Weight 1391 g
Diagonal Distance 350 mm
Max Service Ceiling Above Sea Level 19685 ft (6000 m)
Max Ascent Speed 6 m/s (automatic flight); 5 m/s (manual control)
Max Descent Speed 3 m/s
Max Speed 31 mph (50 kph)(P-mode) 36 mph (58 kph)(A-mode)
Max Flight Time Approx. 30 minutes
Operating Temperature Range 32° to 104° F (0° to 40℃)
Operating Frequency 2.400 GHz to 2.483 GHz (Europe, Japan, Korea) 5.725 GHz to 5.850 GHz (United States, China)
Transmission Power (EIRP) 2.4 GHz CE (Europe) / MIC (Japan) / KCC (Korea) :< 20 dBm 5.8 GHz SRRC(China) / FCC(United States)/NCC(Taiwan,China):< 26 dBm
Hover Accuracy Range RTK enabled and functioning properly: Vertical:±0.1 m;Horizontal:±0.1 m RTK disabled Vertical:±0.1 m(with vision positioning ); ±0.5 m(with GNSS positioning) Horizontal:±0.3 m(with vision positioning); ±1.5 m(with GNSS positioning)
Image Position Offset The position of the camera center is relative to the phase center of the onboard D-RTK antenna under the aircraft body’s axis:(36, 0, and 192 mm) already applied to the image coordinates in Exif data. The positive x, y, and z axes of the aircraft body point to the forward, rightward, and downward of the aircraft, respectively.

Mapping Functions

Mapping Accuracy ** Mapping accuracy meets the requirements of the ASPRS Accuracy Standards for Digital Orthophotos Class Ⅲ ** The actual accuracy depends on surrounding lighting and patterns, aircraft altitude, mapping software used, and other factors when shooting.
Ground Sample Distance(GSD) (H/36.5) cm/pixel, H means the aircraft altitude relative to shooting scene (unit: m)
Data Acquisition Efficiency Max operating area of approx. 1 km² for a single flight(at an altitude of 182 m, i.e., GSD is approx. 5 cm/pixel, meeting the requirements of the ASPRS Accuracy Standards for Digital Orthophotos Class Ⅲ
