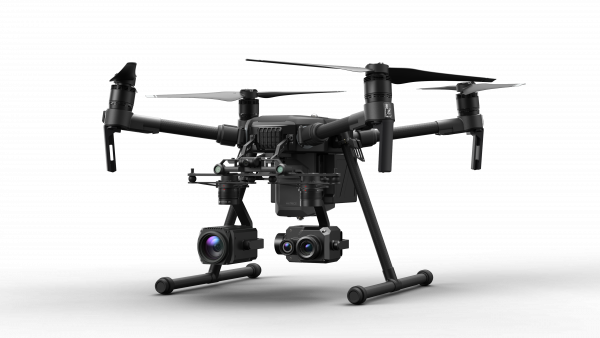

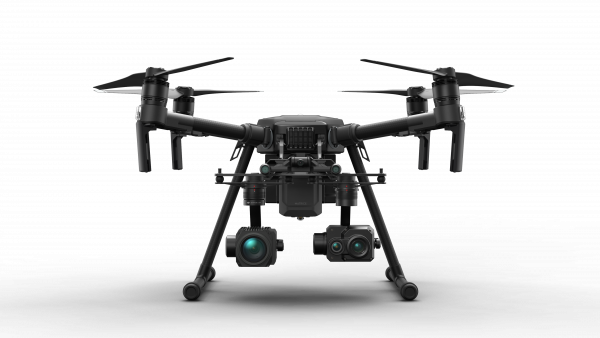

DJI Matrice 210 Series V2

The Matrice 210 Series V2 by DJI has a rugged design with premium aerial productivity which makes it perfect for a variety of industrial applications.

SKU: M210 Category:

Description

The Matrice 210 Series V2 by DJI has a rugged design with premium aerial productivity which makes it perfect for a variety of industrial applications. The Matrice 210 Series V2 has upgraded durability and versatility starting with their intelligent control systems and extended flight range of 8km. It was tested rigorously to ensure it could fly in almost any weather condition while alerting you of the presence of nearby aircrafts. The Matrice 210 Series V2 has refined data encryption that keeps your important information safe and secure.

Features

  • FPV Camera
  • Dual Downward Gimbal
  • 38 Min Max Flight-Time
  • Anti-collision Beacon
  • Discreet Mode
  • DJI SkyPort Compatibility
  • TimeSync
  • Obstacle Avoidance
  • DJI AirSense
  • Multiple Payload Configurations
  • Power Onboard Devices
  • Onboard SDK Compatibility

Additional information

Features

Anti-Collision Beacon, Discreet Mode, DJI AirSense, DJI SkyPort Compatibility, FPV Camera, Mobile SDK Compatibility, Multiple Payload Configurations, Obstacle Avoidance, Time Sync

Ideal Applications

Ideal Applications

  • Public Safety Scouting
  • Public Safety Aerial Overviews
  • Energy Vertical Asset Inspection
  • Energy Defect Detection
  • Infrastructure Asset Inspection
  • Infrastructure Emergency Response
  • Construction Inspection

Specifications

Specs

Dimensions M210 V2:
Unfolded, propellers and landing gears included, 883×886×398 mm
Folded, propellers and landing gears excluded, 722×282×242 mm
Diagonal Wheelbase 643 mm
Weight M210 V2: Approx. 4.8 kg (with two TB55 batteries);
Max Takeoff Weight 6.14 kg
Max Payload M210 V2: 1.34 kg
Operating Frequency 2.4000-2.4835 GHz
EIRP 2.4 GHz: ≤ 26 dBm (NCC/FCC); ≤ 20 dBm (CE/MIC); ≤ 20 dBm (SRRC)
Hovering Accuracy (P-mode with GPS) Vertical: ±1.64 feet (±0.5 m) or ±0.33 feet (±0.1 m, Downward Vision System enabled)
Horizontal: ±4.92 feet (±1.5 m) or ±0.98 feet (±0.3 m, Downward Vision System enabled)
Hovering Accuracy (D-RTK, M210 RTK V2) Vertical: ±0.33 feet (±0.1 m); Horizontal: ±0.33 feet (±0.1 m)
Max Angular Velocity Pitch: 300°/s, Yaw: 120°/s
Max Pitch Angle (Dual Downward Gimbal/Single Upward Gimbal) S-mode: 30°; P-mode: 30° (Forward Vision System enabled: 25°); A-mode: 30°
Max Pitch Angle [Single Downward Gimbal (Gimbal Connector I)] S-mode: 35°; P-mode: 30° (Forward Vision System enabled: 25°); A-mode: 30°
Max Ascent Speed 16.4 ft/s (5 m/s)
Max Descent Speed (vertical) 9.8 ft/s (3 m/s)
Max Speed (Dual Downward Gimbal/Single Upward Gimbal) S-mode/A-mode: 73.8 kph (45.9 mph); P-mode: 61.2 kph (38 mph)
Max Speed [ Single Downward Gimbal (Gimbal ConnectorI) ] S-mode/A-mode: 81 kph (50.3 mph); P-mode: 61.2 kph (38 mph)
Max Service Ceiling Above Sea Level 9842 feet (3000 m, with 1760S propellers)
Max Wind Resistance 39.4 ft/s (12 m/s)
Max Flight Time (with two TB55 batteries) M210 V2: 34 min (no payload), 24 min (takeoff weight: 6.14 kg)
Supported DJI Gimbals Zenmuse X4S/X5S/X7/XT/XT2/Z30
Supported Gimbal Configurations Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal
Ingress Protection Rating IP43
GNSS M210 V2: GPS+GLONASS;
Operating Temperature -4° to 122° F (-20° to 50° C)

Documents

Quick Start Guide
User Manual
What is in the Box
